Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The ADC should be placed close to the analog signal sources, and the digital signals should be routed away from the analog signals. Additionally, decoupling capacitors should be placed close to the ADC power pins.
Optimizing the ADC34J45IRGZT's performance requires understanding the application's specific requirements. Factors to consider include the input signal frequency, amplitude, and impedance, as well as the desired SNR, THD, and SFDR. Texas Instruments provides an ADC Performance Calculator tool to help optimize the ADC's performance for specific applications.
The ADC34J45IRGZT is rated for operation from -40°C to 125°C. To ensure reliable operation, it's essential to consider thermal management, including heat sinking, thermal interface materials, and airflow. Texas Instruments provides thermal design guidelines and recommends using thermal simulation tools to optimize the design.
The ADC34J45IRGZT has a parallel CMOS interface that can be interfaced with a microcontroller or FPGA. Key considerations for digital interface design include clock synchronization, data alignment, and bus width. Texas Instruments provides interface design guidelines and recommends using a dedicated interface IC or a microcontroller with a built-in ADC interface.
The ADC34J45IRGZT is designed to meet electromagnetic compatibility (EMC) standards. To ensure EMC, it's essential to consider EMI and RFI in the design, including shielding, filtering, and grounding. Texas Instruments provides EMC design guidelines and recommends using EMI simulation tools to optimize the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC34J45IRGZT Overview

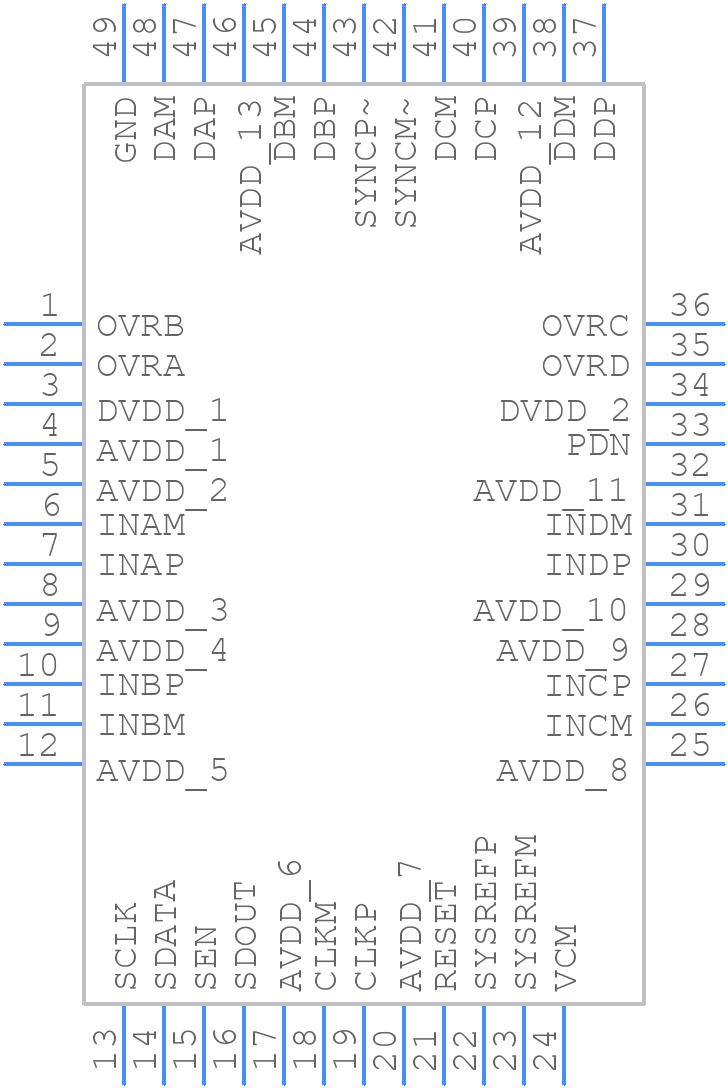

Use the download button to access the ADC34J45IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC34,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
