ADC3660IRSBT - Texas Instruments

Description: Analog to Digital Converters - ADC Dual, 16-bit, 0.5-MSPS to 65-MSPS, low-noise, ultra-low-power analog-to-digital converter (ADC) 40-WQFN -40 to 105

Download ADC3660IRSBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

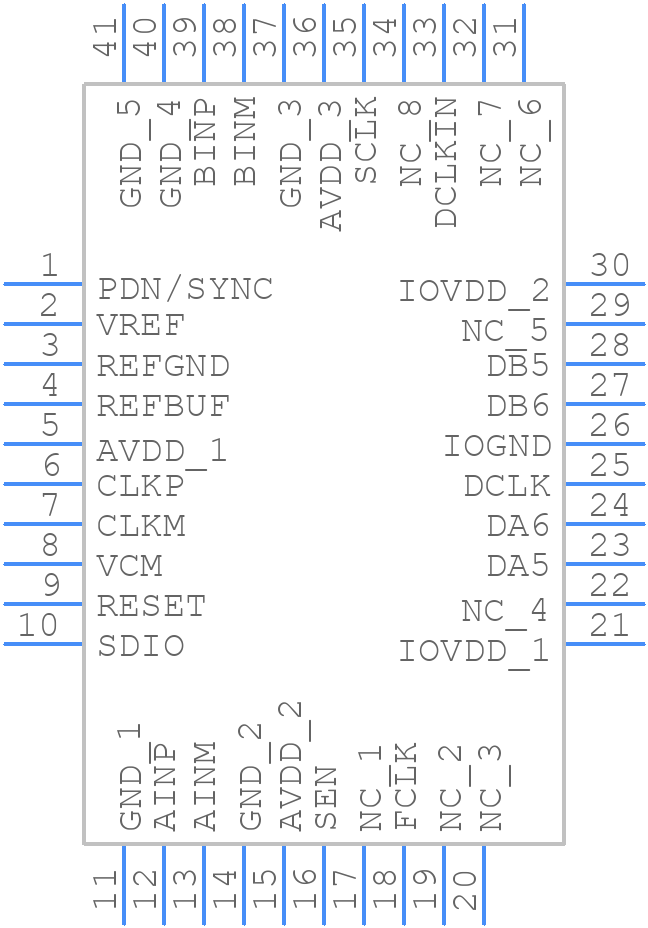

ADC3660IRSBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC3660IRSBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040E WQFN
click to zoom
3D Models
ADC3660IRSBT - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040E WQFN
click to zoom

ADC3660IRSBT Details

  • Manufacturer Part Number:

    ADC3660IRSBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2020-10-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 3.2

  • Analog Input Voltage-Max:

    3.2 V

  • Analog Input Voltage-Min:

    -3.2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.006866455%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.20SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    78 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADC3660IRSBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADC3660IRSBT evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • TI provides an ADC3660IRSBT IBIS model and a simulation model in TINA-TI SPICE, which can be used to simulate and optimize the ADC's performance for specific applications. Additionally, the datasheet provides guidelines for optimizing performance, such as setting the correct clock frequency and input range.
  • The maximum sampling rate of the ADC3660IRSBT is 250 MSPS, but this can be limited by the clock frequency, input bandwidth, and other system-level factors. It's essential to consult the datasheet and perform system-level simulations to determine the maximum achievable sampling rate for a specific application.
  • The ADC3660IRSBT outputs 16-bit digital data, which can be processed using a digital signal processor (DSP) or a field-programmable gate array (FPGA). TI provides example code and software development kits (SDKs) to help with data processing and analysis.
  • The power consumption of the ADC3660IRSBT varies depending on the operating mode and clock frequency. The datasheet provides power consumption estimates, and TI recommends using the ADC's power-down modes and adjusting the clock frequency to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC3660IRSBT Overview

Use the download button to access the ADC3660IRSBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC36, or try a keyword search, such as Analog to Digital Converters
