ADC3662IRSBT - Texas Instruments

Description: Dual-channel, 16-bit, 25-MSPS, low-noise, ultra-low-power analog-to-digital converter (ADC)

Download ADC3662IRSBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

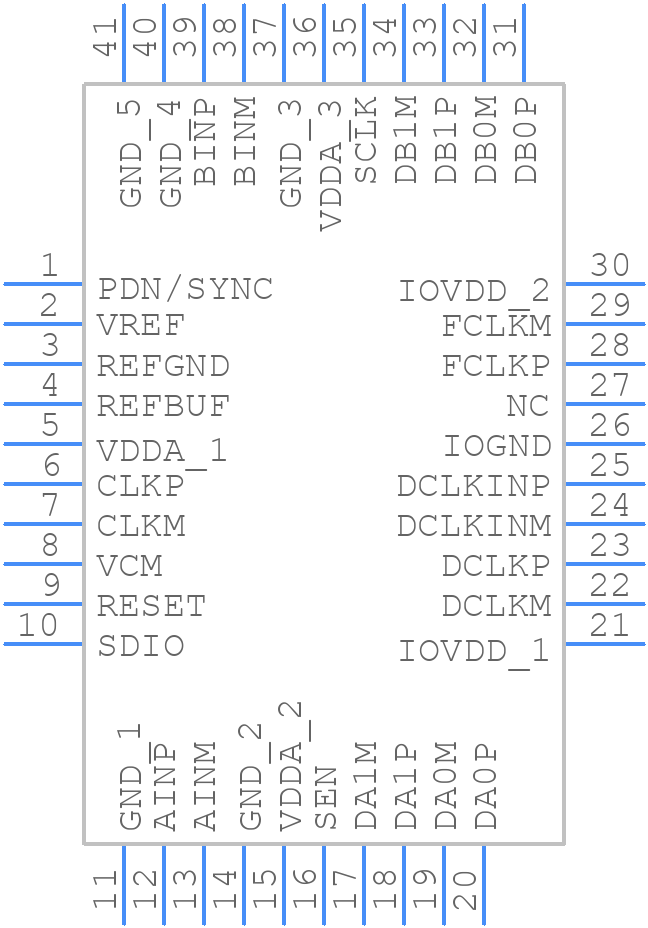

ADC3662IRSBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC3662IRSBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040E
click to zoom
3D Models
ADC3662IRSBT - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040E
click to zoom

ADC3662IRSBT Details

  • Manufacturer Part Number:

    ADC3662IRSBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 3.2

  • Analog Input Voltage-Max:

    3.2 V

  • Analog Input Voltage-Min:

    -3.2 V

  • Conversion Time-Max:

    0.015 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.007629%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.20SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    25 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADC3662IRSBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADC3662IRSBT evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • TI provides an ADC3662IRSBT IBIS model and a simulation model in TINA-TI, which can be used to simulate and optimize the ADC's performance for specific applications. Additionally, the datasheet provides guidelines for optimizing performance, such as setting the clock frequency, input range, and gain settings.
  • The ADC3662IRSBT can achieve a maximum sampling rate of 250 MSPS, but this may vary depending on the specific application and system design. It's essential to consult the datasheet and perform simulations to determine the maximum achievable sampling rate for your specific use case.
  • The ADC3662IRSBT outputs 16-bit digital data, which can be processed using a digital signal processor (DSP) or a microcontroller. TI provides example code and software development kits (SDKs) to help with data processing and analysis.
  • The ADC3662IRSBT has a typical power consumption of 1.2 W at 250 MSPS, but this can vary depending on the specific application and system design. It's essential to consult the datasheet and perform power analysis to determine the actual power consumption for your specific use case.
