ADC3663IRSBT - Texas Instruments

Description: Analog to Digital Converters - ADC Dual-channel, 16-bit, 65-MSPS, low-noise, ultra-low-power analog-to-digital converter (ADC) 40-WQFN -40 to 105

Download ADC3663IRSBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

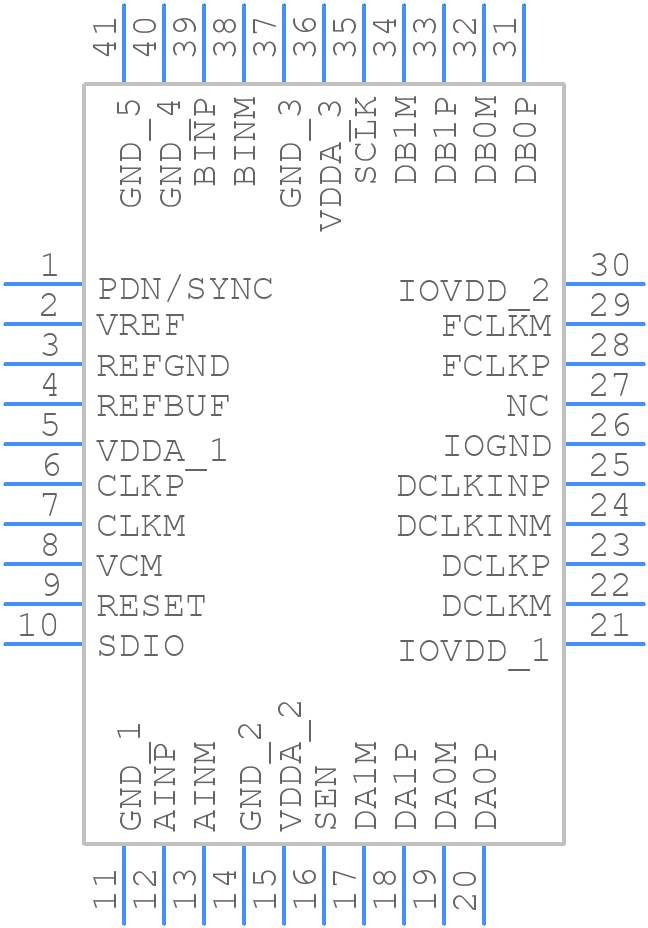

ADC3663IRSBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC3663IRSBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040E WQFN
click to zoom
3D Models
ADC3663IRSBT - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040E WQFN
click to zoom

ADC3663IRSBT Details

  • Manufacturer Part Number:

    ADC3663IRSBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 3.2

  • Analog Input Voltage-Max:

    3.2 V

  • Analog Input Voltage-Min:

    -3.2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0076%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.20SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    65 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    82 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADC3663IRSBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide for the ADC3663IRSBT in the application note 'AN-2169: PCB Layout and Routing Guidelines for ADC3663' which can be found on their website. It is recommended to follow this guide to ensure optimal performance and minimize noise and interference.
  • The ADC3663IRSBT has an internal calibration feature that can be enabled through the CAL pin. The calibration process is described in the datasheet, but it is recommended to refer to the application note 'AN-2170: Calibration and Verification of ADC3663' for more detailed information and examples.
  • The maximum sampling rate of the ADC3663IRSBT is 250 kSPS, but this can be affected by the clock frequency, input signal frequency, and other factors. It is recommended to consult the datasheet and application notes for more information on achieving the maximum sampling rate.
  • The ADC3663IRSBT has a SPI-compatible interface that can be connected to a microcontroller. Texas Instruments provides example code and interface diagrams for popular microcontrollers in the application note 'AN-2171: Interfacing ADC3663 with Microcontrollers'.
  • The power consumption of the ADC3663IRSBT depends on the operating mode, clock frequency, and other factors. The typical power consumption is around 15 mW at 250 kSPS, but this can be reduced to around 5 mW in low-power mode. Refer to the datasheet for more information on power consumption.
