Analog Devices provides a recommended PCB layout guide in the ADE9113 evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ADE9113 requires calibration for accurate energy measurement. Calibration involves setting the gain and offset values for the current and voltage channels. Analog Devices provides a calibration procedure in the ADE9113 datasheet and application notes, which involves measuring the device's output with a known input signal and adjusting the gain and offset values accordingly.
The ADE9113 is rated for operation over an ambient temperature range of -40°C to +125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for temperature-related specifications and guidelines.
Yes, the ADE9113 can be used for three-phase energy measurement. However, it requires additional external circuitry and processing to calculate the three-phase energy values. Analog Devices provides application notes and reference designs for three-phase energy measurement using the ADE9113.
The lead time for ADE9113 samples and production quantities varies depending on the region, quantity, and availability. It's recommended to contact Analog Devices' sales team or authorized distributors for the most up-to-date lead time information and to place orders accordingly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADE9113ARNZ-REEL Overview

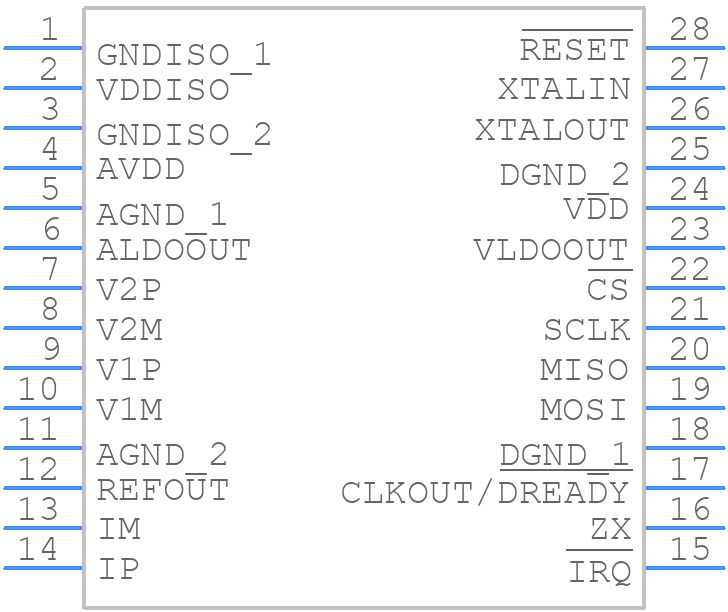

Use the download button to access the ADE9113ARNZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE91,
or try a keyword search, such as Analog to Digital Converters
