ADF5904ACPZ - Analog Devices

Description: Up-Down Converters 24GHz 4 Channel Rx non-IQ MMIC

Download ADF5904ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

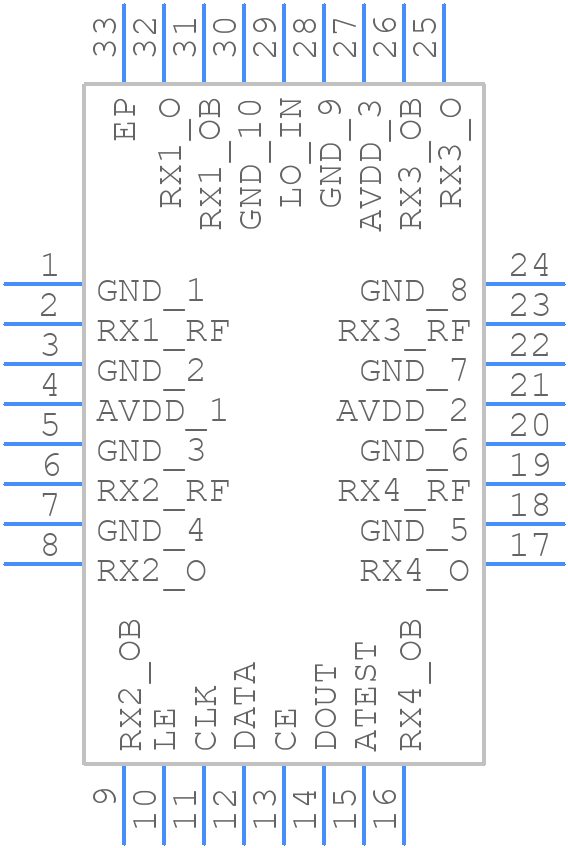

ADF5904ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF5904ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 5 mm × 5 mm Body, Very, Very Thin Quad (CP-32-12)
click to zoom
3D Models
ADF5904ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - . 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 5 mm × 5 mm Body, Very, Very Thin Quad (CP-32-12)
click to zoom

ADF5904ACPZ Details

  • Manufacturer Part Number:

    ADF5904ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD-5, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF5904ACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-grounding scheme to minimize noise.
  • Use the device's programmable gain and bandwidth settings to optimize performance for the desired frequency band. Consult the datasheet for specific register settings and calibration procedures.
  • The maximum power consumption is approximately 1.2W. To reduce power consumption, use the device's power-down modes, reduce the clock frequency, and optimize the gain and bandwidth settings for the specific application.
  • Use a serial peripheral interface (SPI) or a parallel interface to connect the ADF5904ACPZ to a microcontroller or FPGA. Consult the datasheet for specific interface timing and protocol requirements.
  • The ADF5904ACPZ is designed to meet the requirements of aerospace and defense applications, with a total ionizing dose (TID) tolerance of up to 30 krad. It operates over a temperature range of -40°C to 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF5904ACPZ Overview

Use the download button to access the ADF5904ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF59, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
