ADF7012BRUZ - Analog Devices

Description: ADF7012BRUZ, RF Transmitter 75 to 1000MHz, ASK, FSK, 2.3 to 3.6V 24-Pin TSSOP

Download ADF7012BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

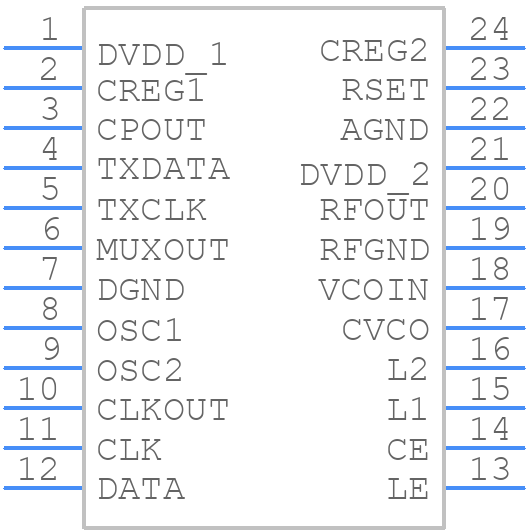

ADF7012BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7012BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)
click to zoom
3D Models
ADF7012BRUZ - Analog Devices - 3D model - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)
click to zoom

ADF7012BRUZ Details

  • Manufacturer Part Number:

    ADF7012BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RU-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADF7012BRUZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-grounding configuration to minimize noise.
  • Use the device's shutdown mode to reduce power consumption when not in use. Also, optimize the clock frequency and voltage regulator settings to minimize power consumption. Consider using a low-dropout regulator to reduce power consumption further.
  • Use a parallel-resonant crystal oscillator circuit with a 10-20 pF load capacitance and a 1-2 kΩ series resistor. Ensure the crystal oscillator circuit is decoupled from the power supply and digital sections.
  • Check the ADC's input signal range and ensure it is within the specified range. Verify the ADC's clock frequency and ensure it is within the specified range. Check for noise and interference on the ADC's input pins and ensure proper grounding and shielding.
  • Use the Analog Devices Inc. provided programming software and follow the recommended programming procedure outlined in the datasheet. Ensure the device is properly powered and connected to the programming interface.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF7012BRUZ Overview

Use the download button to access the ADF7012BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF70, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
