- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADF7023BCPZ-RL
- Part Number ADF7023BCPZ-RL
- Manufacturer Analog Devices
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - (CP-32-13
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADF7023BCPZ-RL Details
-
Manufacturer Part Number:
ADF7023BCPZ-RL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
QFN
-
Package Description:
LFCSP-32
-
Pin Count:
32
-
Manufacturer Package Code:
CP-32-13
-
Country Of Origin:
Mainland China
-
ECCN Code:
5A992.C
-
HTS Code:
8542.39.00.01
ADF7023BCPZ-RL Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADF7023BCPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the RF pins. A 4-layer PCB with a dedicated ground plane is recommended.
-
To optimize the performance of the ADF7023BCPZ-RL, ensure that the device is operated within its recommended operating conditions, use a high-quality crystal oscillator, and optimize the external component values for the specific frequency band of operation.
-
The ADF7023BCPZ-RL has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink if the device is expected to operate in high-temperature environments.
-
To troubleshoot issues with the ADF7023BCPZ-RL, start by verifying the power supply and clock signals, then check the RF signal chain and the digital interface. Use a logic analyzer or oscilloscope to debug the digital signals, and a spectrum analyzer to debug the RF signals.
-
The ADF7023BCPZ-RL has built-in ESD protection, but it is still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
Trust Checks
System Verified
ADF7023BCPZ-RL Overview

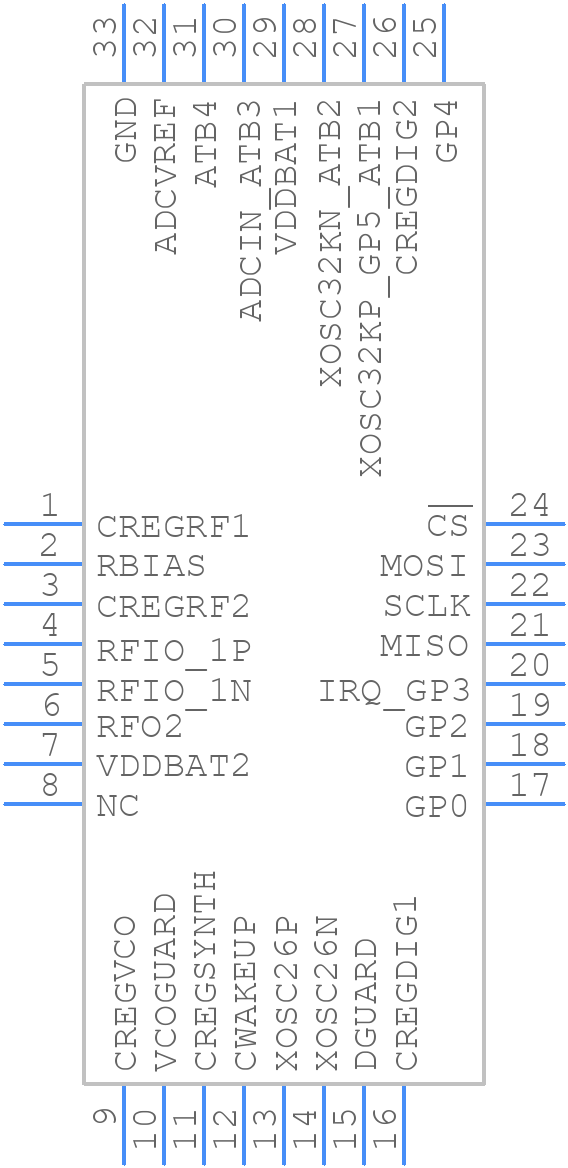

Use the download button to access the ADF7023BCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF70,
or try a keyword search, such as Other Telecom ICs
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
