ADF7024BCPZ - Analog Devices

Description: Analog Devices ADF7024BCPZ, RF Transceiver IC 431MHz to 435MHz Dual Band 32-Pin LFCSP WQ

Download ADF7024BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

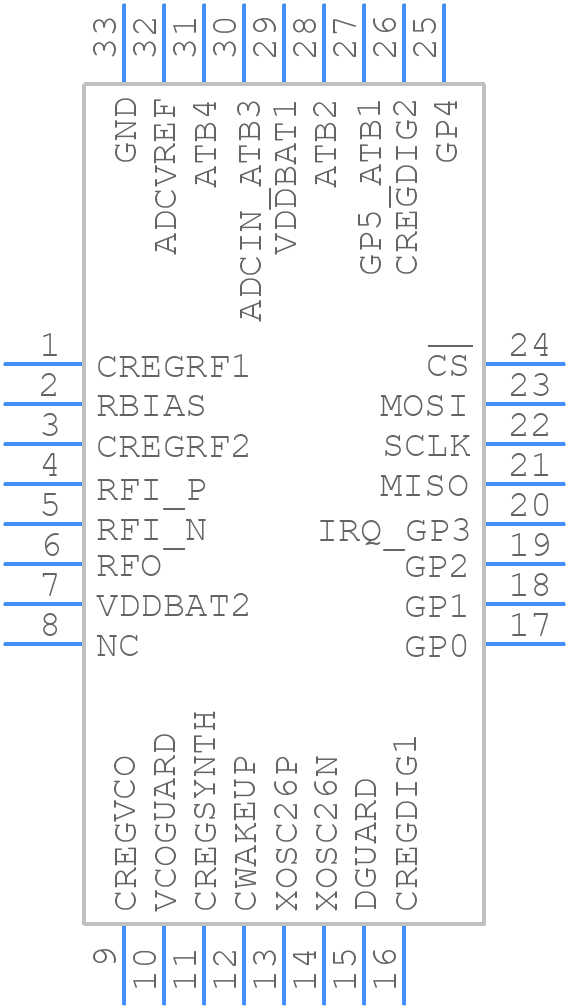

ADF7024BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7024BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-13
click to zoom
3D Models
ADF7024BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-13
click to zoom

ADF7024BCPZ Details

  • Manufacturer Part Number:

    ADF7024BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-13

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF7024BCPZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF7024BCPZ can be found in the ADI's application note AN-1369, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • To configure the ADF7024BCPZ for optimal power consumption, refer to the Power Management section in the datasheet, which provides information on power modes, sleep modes, and shutdown modes. Additionally, consider using the device's built-in power-saving features, such as the automatic power-down mode, and optimizing the transmit power and data rate for the specific application.
  • The maximum operating temperature range for the ADF7024BCPZ is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, and additional thermal management may be required for high-temperature applications.
  • To troubleshoot issues with the ADF7024BCPZ's RF performance, refer to the RF Performance Characteristics section in the datasheet, which provides information on the device's RF specifications and test conditions. Additionally, use tools such as spectrum analyzers and signal generators to measure and analyze the RF signals, and consult ADI's application notes and technical support resources for guidance on troubleshooting and optimization.
  • Yes, the ADF7024BCPZ can be used with an external crystal oscillator. The device has an internal oscillator, but an external crystal oscillator can be used to improve the frequency accuracy and stability. Refer to the Clocking and Oscillators section in the datasheet for more information on using an external crystal oscillator with the ADF7024BCPZ.
