Part Image

ADF7241BCPZ - Analog Devices

Description: Low Power IEEE 802.15.4 Zero-IF 2.4 GHz Transceiver IC

Download ADF7241BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

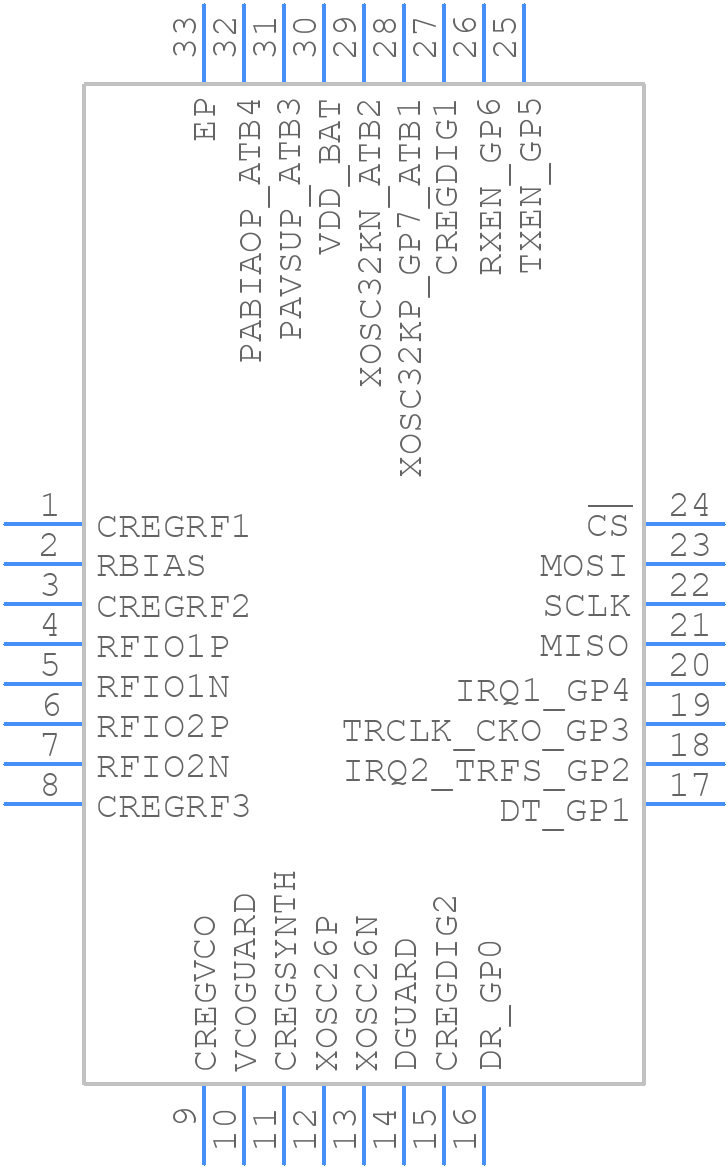

Symbol
ADF7241BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7241BCPZ - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-33N
click to zoom
3D Models
ADF7241BCPZ - Analog Devices - 3D model - Other - QFN50P500X500X80-33N
click to zoom

ADF7241BCPZ Details

  • Manufacturer Part Number:

    ADF7241BCPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:36.14

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-13

  • Country Of Origin:

    Singapore

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF7241BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADF7241BCPZ. Ensure a solid ground plane, keep the RF traces short and away from digital lines, and use a 4-layer PCB with a dedicated layer for the RF signal. Also, follow the recommended component placement and routing guidelines in the datasheet.
  • To minimize power consumption, set the device to the lowest possible frequency, use the lowest possible voltage supply, and enable the power-saving features like the low-power mode and the shutdown mode. Additionally, optimize the transmit power and data rate according to your application's requirements.
  • The ADF7241BCPZ can support data rates up to 3 Mbps, but the actual achievable data rate depends on the specific application, transmission distance, and environmental conditions. In ideal conditions, the device can achieve data rates close to 3 Mbps, but in practice, a more realistic data rate is around 1-2 Mbps.
  • To troubleshoot issues with the ADF7241BCPZ, start by verifying the PCB layout, component placement, and soldering quality. Check the power supply voltage, clock frequency, and data transmission settings. Use a spectrum analyzer to verify the RF signal quality and frequency. Also, review the firmware code and ensure that it is correctly configured and optimized for the device.
  • Yes, you can use the ADF7241BCPZ with an external antenna. However, ensure that the antenna is designed for the same frequency band as the device and has a suitable impedance matching. Also, consider the antenna's radiation pattern, gain, and size to ensure optimal performance. Additionally, follow the recommended antenna connection and layout guidelines in the datasheet.
