ADFS7124-8BBCPZ - Analog Devices

Description: ► Functional safety approved to SC3 by TÜV Rheinland, File Number 968/FSP 2188.01/23 ► Three power modes ► RMS noise ► Low power: 24 nV rms at 1.17 SPS, gain = 128 (255 µA typical) ► Mid power: 20 nV rms at 2.34 SPS, gain = 128 (355 µA typical) ► Full power: 23 nV rms at 9.4 SPS, gain = 128 (930 µA typical) ► Up to 22 noise free bits in all power modes (gain = 1) ► Output data rate ► Full power: 9.38 SPS to 19,200 SPS ► Mid power: 2.34 SPS to 4800 SPS ► Low power: 1.17 SPS to 2400 SPS ► Rail-t

Download ADFS7124-8BBCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

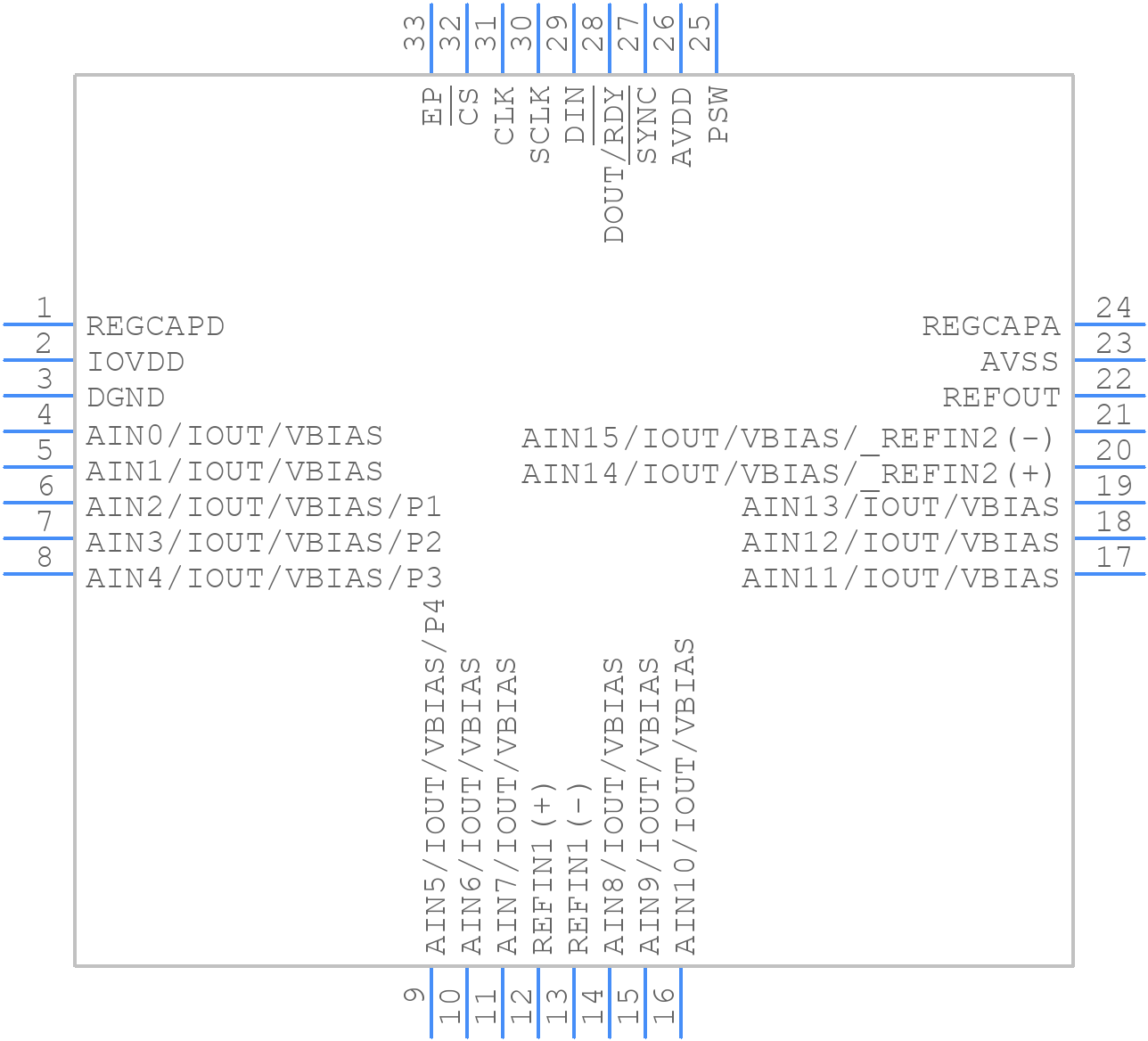

ADFS7124-8BBCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADFS7124-8BBCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-30*
click to zoom
3D Models
ADFS7124-8BBCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-30*
click to zoom

ADFS7124-8BBCPZ Details

  • Manufacturer Part Number:

    ADFS7124-8BBCPZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADFS7124-8BBCPZ Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADFS7124-8BBCPZ evaluation board documentation, which can be found on their website. It's essential to maintain a symmetrical layout, keep the analog and digital grounds separate, and use a solid ground plane to minimize noise and ensure optimal performance.
  • The ADFS7124-8BBCPZ uses a standard SPI protocol. You'll need to configure your microcontroller's SPI peripheral to operate in mode 0 or 3, with a clock frequency up to 20 MHz. Make sure to set the correct chip select (CS) pin and configure the data transfer format (MSB or LSB first) according to your microcontroller's requirements.
  • The ADFS7124-8BBCPZ can operate at a maximum sampling rate of 2 MSPS (mega-samples per second). However, the achievable sampling rate may be limited by your system's bandwidth, noise, and the quality of your analog input signals.
  • Calibration is not required for the ADFS7124-8BBCPZ, as it has an internal calibration mechanism. However, you may need to adjust the gain and offset settings depending on your specific application and signal conditioning requirements.
  • The ADFS7124-8BBCPZ has a typical power consumption of 35 mW at a supply voltage of 3.3 V. However, the actual power consumption may vary depending on your system's operating conditions, sampling rate, and interface activity.
