ADG5462FBRUZ-RL7 - Analog Devices

Description: Switch ICs - Various -55V Fault Protected Output clamping

Download ADG5462FBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

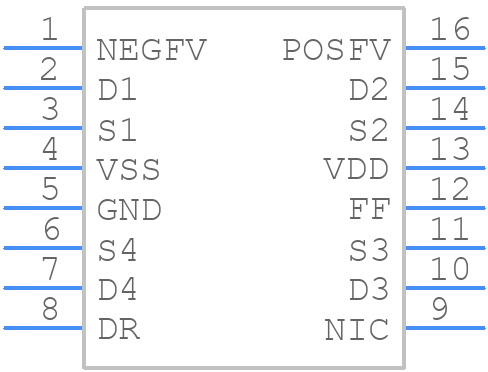

ADG5462FBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG5462FBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP(RU-16)
click to zoom
3D Models
ADG5462FBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - TSSOP(RU-16)
click to zoom

ADG5462FBRUZ-RL7 Details

  • Manufacturer Part Number:

    ADG5462FBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OTHER SUPPLY VOLTAGE IS 8 V TO 44 V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.7V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG5462FBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG5462FBRUZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. Additionally, placing the device close to the analog signal sources and using shielding or guard rings to reduce noise coupling is recommended.
  • To ensure the ADG5462FBRUZ-RL7 operates within its specified temperature range, it's essential to provide adequate heat sinking, avoid overheating, and maintain a stable ambient temperature. The device's thermal pad should be connected to a solid ground plane or a heat sink to dissipate heat efficiently.
  • The ADG5462FBRUZ-RL7 requires a specific power sequencing to prevent latch-up or damage. The recommended sequence is to power up the VDD supply first, followed by the VSS supply. Ensure the power supplies are well-regulated, and the voltage difference between VDD and VSS does not exceed the recommended maximum rating.
  • To minimize EMI and RFI, use a multilayer PCB with a solid ground plane, keep signal traces short and away from the device's pins, and use shielding or guard rings to reduce noise coupling. Additionally, ensure the device is placed in a shielded area, and use EMI filters or common-mode chokes on the power supplies.
  • When driving capacitive loads with the ADG5462FBRUZ-RL7, ensure the output stage is properly biased, and the capacitive load is within the recommended range. Use a series resistor to limit the output current, and consider adding a snubber network to reduce ringing and overshoot.
