ADM1065ASUZ - Analog Devices

Description: Analog Devices ADM1065ASUZ, 10-channel Voltage Supervisor, -5 → +24 V, Reset Input, 48-Pin TQFP

Download ADM1065ASUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

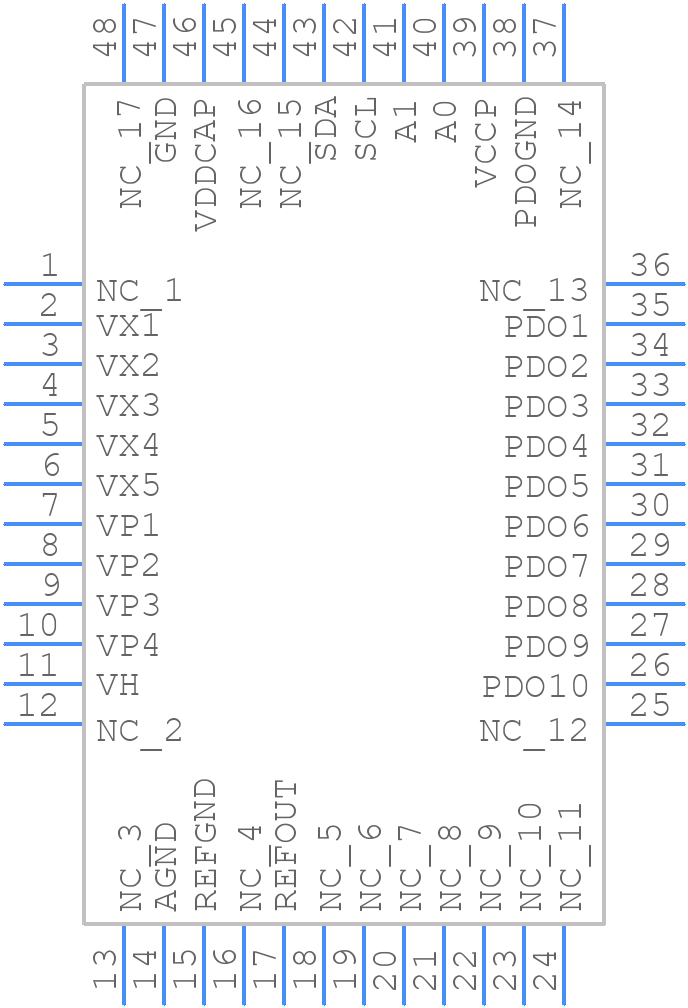

ADM1065ASUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1065ASUZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead Thin Plastic Quad Flat Package [TQFP]
click to zoom
3D Models
ADM1065ASUZ - Analog Devices - 3D model - Quad Flat Packages - 48-Lead Thin Plastic Quad Flat Package [TQFP]
click to zoom

ADM1065ASUZ Details

  • Manufacturer Part Number:

    ADM1065ASUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SU-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    6 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADM1065ASUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1065ASUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
  • The ADM1065ASUZ can be configured for different voltage systems by selecting the appropriate input voltage range and output voltage settings. This can be done by programming the device's registers using the I2C interface. The specific configuration will depend on the application requirements, but Analog Devices provides a software development kit (SDK) and application notes to help with the configuration process.
  • The ADM1065ASUZ can sink or source up to 10mA of current on its output pins, making it suitable for driving small loads such as LEDs or logic-level inputs. However, it's recommended to check the specific output pin characteristics and limitations in the datasheet to ensure that the device can meet the requirements of the application.
  • The ADM1065ASUZ has built-in overvoltage and undervoltage protection on its input pins, which can detect and respond to fault conditions. The device can be configured to generate an alert or shutdown the system in response to an overvoltage or undervoltage event, depending on the application requirements.
  • Yes, the ADM1065ASUZ is rated for operation in high-temperature environments, with a maximum junction temperature of 150°C. However, it's recommended to check the device's thermal characteristics and ensure that the system design can dissipate the heat generated by the device. Additionally, the device's performance and accuracy may be affected at high temperatures, so it's essential to consult the datasheet and application notes for more information.
