ADM1232AARNZ - Analog Devices

Description: Analog Devices ADM1232AARNZ, Voltage Supervisor, Maximum of 5 V, WDT, Reset Input, 8-Pin SOIC

Download ADM1232AARNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

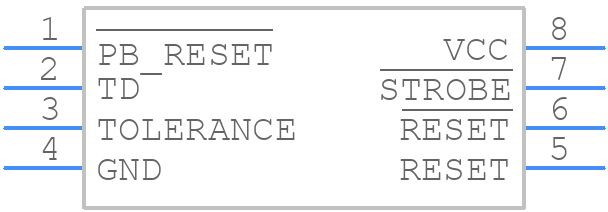

Symbol
ADM1232AARNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1232AARNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
ADM1232AARNZ - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

ADM1232AARNZ Details

  • Manufacturer Part Number:

    ADM1232AARNZ

  • Source Url Status Check Date:

    2013-05-01 14:56:39.8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    8.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.37,4.62V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.9 mm

ADM1232AARNZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keeping the analog and digital grounds separate, and placing the device close to the power source. Additionally, ensure that the input and output traces are routed away from each other and from noisy digital signals.
  • The ADM1232AARNZ has a thermal pad that must be connected to a thermal plane or heat sink to dissipate heat. Ensure good thermal conductivity between the device and the heat sink, and consider using thermal interface materials if necessary. Also, follow the recommended operating temperature range and derate the device accordingly.
  • The recommended input voltage range for the ADM1232AARNZ is 2.7V to 5.5V. Operating outside this range may affect the output voltage regulation, causing it to deviate from the specified tolerance. Ensure that the input voltage is within the recommended range to maintain optimal performance.
  • The ADM1232AARNZ has a shutdown pin (SHDN) that can be used to put the device in low-power mode. When SHDN is pulled low, the device enters shutdown mode, reducing power consumption to typically 1μA. Wake-up time from shutdown mode is typically 10μs. Consult the datasheet for specific details on shutdown and wake-up timing.
  • The ADM1232AARNZ is designed to meet EMI and EMC standards, but proper PCB layout, grounding, and shielding are still essential. Use a solid ground plane, keep sensitive analog signals away from noisy digital signals, and consider using EMI filters or shielding on the PCB to minimize electromagnetic interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM1232AARNZ Overview

Use the download button to access the ADM1232AARNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM12, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
