ADM1275-2ARQZ - Analog Devices

Description: Analog Devices ADM1275-2ARQZ, Hot Swap Controller, 2.95 → 20 V, 16-Pin, QSOP

Download ADM1275-2ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

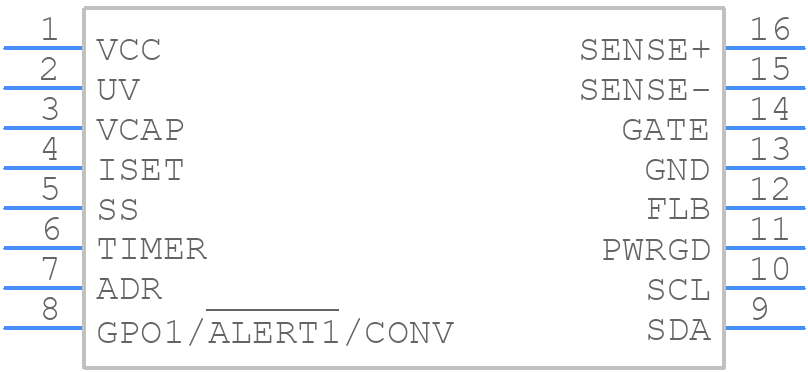

ADM1275-2ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM1275-2ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RQ-16)_16
click to zoom
3D Models
ADM1275-2ARQZ - Analog Devices - 3D model - Small Outline Packages - (RQ-16)_16
click to zoom

ADM1275-2ARQZ Details

  • Manufacturer Part Number:

    ADM1275-2ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    DIGITAL POWER CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.95 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

ADM1275-2ARQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM1275-2ARQZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the accuracy of the current measurement, it's essential to use a high-precision sense resistor, keep the sense resistor close to the device, and use a Kelvin connection to the sense resistor. Additionally, the device should be calibrated during production, and the calibration data should be stored in the device's EEPROM.
  • The maximum allowed voltage drop across the sense resistor in the ADM1275-2ARQZ is 500 mV. Exceeding this voltage drop can lead to inaccurate current measurements and potentially damage the device.
  • The ADM1275-2ARQZ is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. A heat sink or thermal pad may be required to ensure the device operates within its specified temperature range.
  • To troubleshoot issues with the ADM1275-2ARQZ, start by checking the device's power supply, sense resistor, and PCB layout. Verify that the device is properly calibrated and configured. Use a multimeter to measure the voltage across the sense resistor and the device's output pins. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
