ADM12914-1ARQZ-RL7 - Analog Devices

Description: ±0.8% Accurate Quad UV/OV Positive/Negative Voltage Supervisor

Download ADM12914-1ARQZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

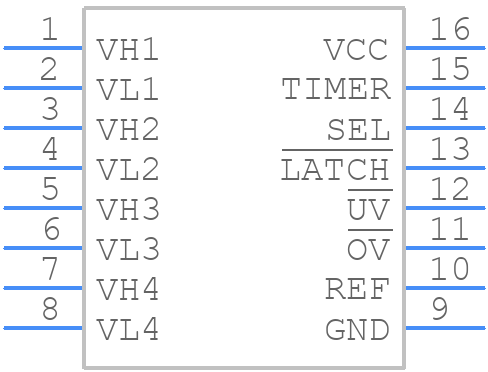

ADM12914-1ARQZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM12914-1ARQZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16
click to zoom
3D Models
ADM12914-1ARQZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RQ-16
click to zoom

ADM12914-1ARQZ-RL7 Details

  • Manufacturer Part Number:

    ADM12914-1ARQZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.65 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    6.8 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

ADM12914-1ARQZ-RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADM12914-1ARQZ-RL7 evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • To ensure accurate voltage monitoring, it is essential to follow proper layout and routing guidelines, use a low-impedance voltage source, and minimize noise coupling. Additionally, calibrate the device using the CAL pin and ensure that the voltage monitoring inputs are within the specified range.
  • The maximum cable length supported by the ADM12914-1ARQZ-RL7 depends on the cable type, gauge, and noise environment. As a general guideline, Analog Devices recommends keeping the cable length below 10 meters to minimize signal attenuation and noise pickup. However, longer cable lengths can be used with proper shielding, termination, and signal conditioning.
  • Yes, the ADM12914-1ARQZ-RL7 is suitable for hot-swap applications due to its high-speed voltage monitoring and overvoltage protection capabilities. However, it is essential to ensure that the device is properly configured and that the system is designed to handle the hot-swap event without causing damage to the device or the system.
  • To troubleshoot issues with the ADM12914-1ARQZ-RL7, start by reviewing the datasheet and application notes, and then check the device's configuration, voltage monitoring inputs, and output signals. Use oscilloscopes or logic analyzers to debug the device's behavior and identify potential issues. Analog Devices also provides technical support and resources to help troubleshoot and resolve issues.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADM12914-1ARQZ-RL7 Overview

Use the download button to access the ADM12914-1ARQZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM12, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
