ADM12914-1ARQZ - Analog Devices

Description: Analog Devices ADM12914-1ARQZ, Quad Voltage Supervisor, 2.3 → 6 V, 16-Pin QSOP

Download ADM12914-1ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

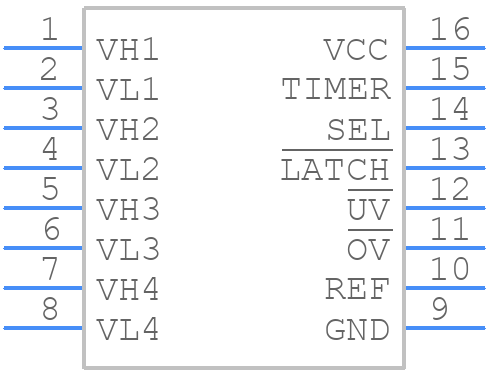

Symbol
ADM12914-1ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM12914-1ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RQ-16)_16
click to zoom
3D Models
ADM12914-1ARQZ - Analog Devices - 3D model - Small Outline Packages - (RQ-16)_16
click to zoom

ADM12914-1ARQZ Details

  • Manufacturer Part Number:

    ADM12914-1ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.65 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    6.8 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

ADM12914-1ARQZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-grounding scheme to minimize noise.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power decoupling, and place it as close to the device as possible. Ensure the power supply is clean and regulated, and use a ferrite bead or inductor to filter out high-frequency noise.
  • The recommended clock frequency is 10MHz to 40MHz. Use a crystal oscillator or a high-quality clock source, and ensure the clock signal is clean and stable. Configure the clock mode according to the datasheet, and use the internal clock divider if necessary.
  • Use the power-down mode when not in use, and adjust the clock frequency and voltage regulator settings to minimize power consumption. Consider using a low-power mode or dynamic voltage and frequency scaling to optimize power consumption.
  • Ensure good airflow around the device, and use a heat sink or thermal pad if necessary. Keep the device within the recommended operating temperature range (-40°C to 125°C), and avoid overheating or thermal stress.
