ADM13307-18ARZ - Analog Devices

Description: Triple Processor Supervisors

Download ADM13307-18ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

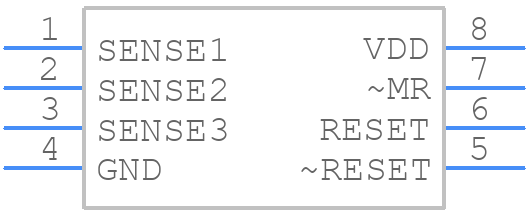

ADM13307-18ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM13307-18ARZ - Analog Devices PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
ADM13307-18ARZ - Analog Devices - 3D model - Other - SOIC127P600X175-8N
click to zoom

ADM13307-18ARZ Details

  • Manufacturer Part Number:

    ADM13307-18ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MANUAL RESET

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM13307-18ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM13307-18ARZ involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADM13307-18ARZ requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. The power sequencing requirement is to power up the device after the input voltage has stabilized.
  • The recommended input termination for the ADM13307-18ARZ is a 50Ω resistor to match the impedance of the input signal. The recommended output termination is a 50Ω resistor in series with a 10nF capacitor to filter out high-frequency noise.
  • The ADM13307-18ARZ has a thermal pad on the bottom of the package that should be connected to a thermal plane on the PCB to dissipate heat. It's recommended to use a thermal interface material between the device and the PCB to improve heat transfer.
  • The ADM13307-18ARZ has built-in ESD protection, but it's still recommended to handle the device with care to prevent damage. Use an anti-static wrist strap or mat, and avoid touching the device pins or handling the device in a way that could generate static electricity.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADM13307-18ARZ Overview

Use the download button to access the ADM13307-18ARZ schematic symbol, PCB footprint, and 3D model.
