ADM13307-4ARZ - Analog Devices

Description: Analog Devices ADM13307-4ARZ, Triple-Channel Voltage Supervisor 2.25V max., Reset Input 8-Pin, SOIC

Download ADM13307-4ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

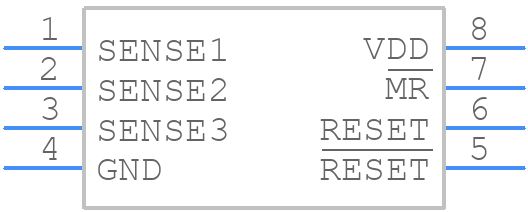

Symbol
ADM13307-4ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM13307-4ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
ADM13307-4ARZ - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

ADM13307-4ARZ Details

  • Manufacturer Part Number:

    ADM13307-4ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MANUAL RESET

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM13307-4ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM13307-4ARZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down, the ADM13307-4ARZ requires a controlled power supply ramp-up and ramp-down. A soft-start circuit can be used to limit the inrush current during power-up, and a power-down sequence should be implemented to prevent voltage spikes.
  • The ADM13307-4ARZ is rated for operation from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain reliable operation.
  • To troubleshoot issues with the ADM13307-4ARZ, start by verifying the power supply and input signals. Check for proper voltage levels, signal integrity, and correct pin connections. Use an oscilloscope to monitor the output signals and look for signs of oscillation or instability.
  • The ADM13307-4ARZ is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design, testing, and validation. It's essential to follow Analog Devices' guidelines for reliability and safety, and to consult with their application engineers for specific guidance.
