ADM2461EBRWZ - Analog Devices

Description: 500 kbps, 5.7 kV RMS, Signal Isolated Half Duplex RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2461EBRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

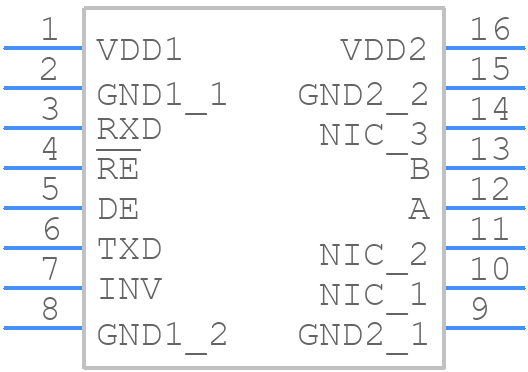

ADM2461EBRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2461EBRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADM2461EBRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADM2461EBRWZ Details

  • Manufacturer Part Number:

    ADM2461EBRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Level Input Current-Max:

    0.000003 A

  • Interface IC Type:

    LINE TRANSCEIVER

ADM2461EBRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2461EBRWZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a shielded enclosure and minimizing the length of the digital signal traces can help reduce EMI.
  • To ensure proper power and decoupling, use a high-quality power supply with low ripple and noise, and decouple the device with 0.1uF and 10uF capacitors between VCC and GND. Additionally, use a 10nF capacitor between VCC and AVCC for analog power supply decoupling.
  • The ADM2461EBRWZ can achieve data rates of up to 100 Mbps, but the actual data rate may vary depending on the specific application, cable length, and noise environment.
  • To troubleshoot issues with the ADM2461EBRWZ, check the power supply and decoupling, ensure proper termination and impedance matching, and verify the signal integrity using an oscilloscope. Also, check the device's configuration and programming, and consult the datasheet and application notes for guidance.
  • The ADM2461EBRWZ is rated for operation from -40°C to +85°C, but it can be used in harsh environments with proper design and testing. However, it's essential to consult the datasheet and application notes for specific guidance on using the device in extreme environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM2461EBRWZ Overview

Use the download button to access the ADM2461EBRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM24, or try a keyword search, such as Line Driver or Receivers
