ADM2567EBRNZ - Analog Devices

Description: 3 kV RMS Signal and Power Isolated RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2567EBRNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

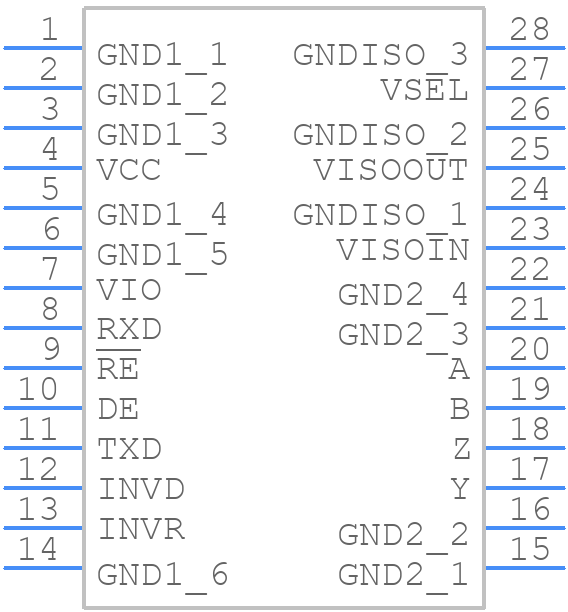

ADM2567EBRNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2567EBRNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RN-28-1
click to zoom
3D Models
ADM2567EBRNZ - Analog Devices - 3D model - Small Outline Packages - RN-28-1
click to zoom

ADM2567EBRNZ Details

  • Manufacturer Part Number:

    ADM2567EBRNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    LOGIC VIO SUPPLY OF 1.7 V TO 5.5 V

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485; TIA-422; EIA-422

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Receive Delay-Max:

    50 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    51 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    25 ns

  • Width:

    7.5 mm

ADM2567EBRNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2567EBRNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to place the device close to the isolation barrier and to use a common mode choke to filter the input signals.
  • To ensure reliable operation of the ADM2567EBRNZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
  • When using the ADM2567EBRNZ, it's crucial to implement proper EMI filtering to ensure reliable operation. This includes using a common mode choke, adding capacitors to filter the input signals, and shielding the device and its associated components.
  • To troubleshoot common issues with the ADM2567EBRNZ, start by verifying the power supply and clock signals, then check the signal integrity and isolation. Use an oscilloscope to inspect the signal waveforms and ensure that the device is properly configured and connected.
  • The recommended power-up sequence for the ADM2567EBRNZ is to first apply the analog power supply (VCC), followed by the digital power supply (VDD), and finally the clock signal. For power-down, the sequence should be reversed.
