ADM2761EBRWZ - Analog Devices

Description: 5.7 kV RMS Isolated, High Working Voltage, RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2761EBRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

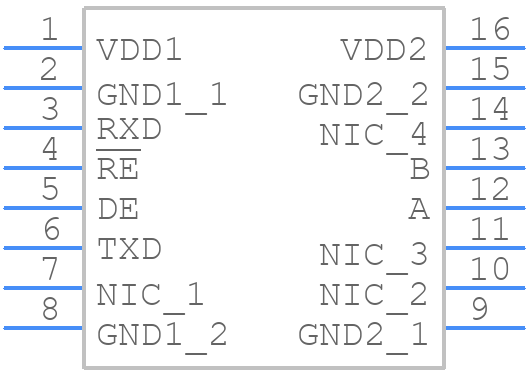

ADM2761EBRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2761EBRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16
click to zoom
3D Models
ADM2761EBRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16
click to zoom

ADM2761EBRWZ Details

  • Manufacturer Part Number:

    ADM2761EBRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.001 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    400 ns

  • Width:

    7.5 mm

ADM2761EBRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2761EBRWZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a multilayer board with a dedicated power plane and to avoid routing high-frequency signals near the device.
  • To ensure reliable operation of the ADM2761EBRWZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • Not using the recommended external components for the ADM2761EBRWZ can lead to reduced performance, increased power consumption, and potentially even device failure. The recommended components are chosen to ensure optimal performance, and substituting them with alternative components can affect the device's ability to meet its specified parameters.
  • To troubleshoot issues with the ADM2761EBRWZ, start by reviewing the device's datasheet and application notes to ensure that the device is being used within its specified parameters. Check the power supply, clock signals, and input/output connections for any errors or anomalies. Use oscilloscopes or logic analyzers to monitor the device's signals and identify any issues. If the problem persists, contact Analog Devices' technical support for further assistance.
  • The ADM2761EBRWZ is designed to meet certain EMI/EMC standards, but it's still important to consider the potential EMI/EMC implications of using the device in a design. This includes ensuring that the device is properly shielded, using EMI filters or chokes as needed, and following good PCB layout practices to minimize radiation and susceptibility to external interference.
