ADM2763EBRWZ-RL7 - Analog Devices

Description: 5.7 kV RMS Isolated, High Working Voltage, RS-485 Transceiver with ?15 kV IEC ESD , 1.7V ~ 5.5V, 3V ~ 5.5V , -40°C ~ 125°C (TA)

Download ADM2763EBRWZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

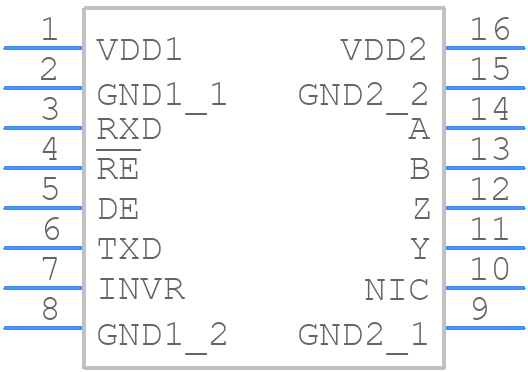

ADM2763EBRWZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2763EBRWZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16_2023
click to zoom
3D Models
ADM2763EBRWZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RW-16_2023
click to zoom

ADM2763EBRWZ-RL7 Details

  • Manufacturer Part Number:

    ADM2763EBRWZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.001 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    400 ns

  • Width:

    7.5 mm

ADM2763EBRWZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2763EBRWZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADM2763EBRWZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • The ADM2763EBRWZ-RL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe tools. Additionally, the device should be handled in a static-safe environment, and ESD-sensitive components should be protected with ESD shielding bags or containers.
  • To troubleshoot common issues with the ADM2763EBRWZ-RL7, start by checking the power supply voltage, ensuring that it's within the specified range. Next, verify that the device is properly configured and that the input signals are correct. Use a logic analyzer or oscilloscope to debug communication issues, and check the device's error flags and status registers for any indication of faults. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The ADM2763EBRWZ-RL7 is designed to be radiation-tolerant and latch-up immune, but it's still important to follow proper design and testing practices to ensure reliable operation in harsh environments. This includes using radiation-hardened components, following proper PCB layout and design guidelines, and testing the device for radiation tolerance and latch-up immunity according to industry standards.
