ADM2795ETRWZ-EP - Analog Devices

Description: RS-422/RS-485 Interface IC Iso EMC Protected RS-485 Transceiver

Download ADM2795ETRWZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

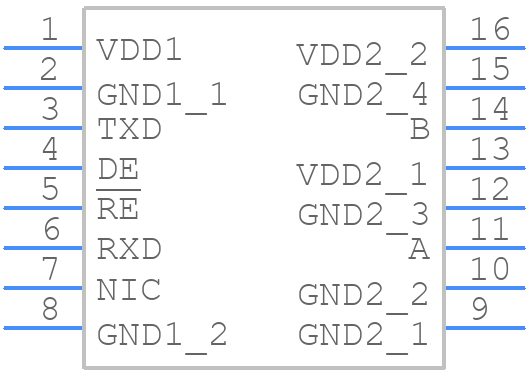

ADM2795ETRWZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM2795ETRWZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom
3D Models
ADM2795ETRWZ-EP - Analog Devices - 3D model - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom

ADM2795ETRWZ-EP Details

  • Manufacturer Part Number:

    ADM2795ETRWZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; TIA-422; EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Out Swing-Min:

    1.5 V

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    130 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    500 ns

  • Width:

    7.5 mm

ADM2795ETRWZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2795ETRWZ-EP involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the digital signal traces. Additionally, it's recommended to place the device close to the isolation barrier and use a low-impedance power supply.
  • To ensure reliable operation of the ADM2795ETRWZ-EP in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its specified operating temperature range.
  • When using the ADM2795ETRWZ-EP in a system with multiple power domains, it's crucial to ensure that the device is powered from a single, stable power source. Additionally, the device's power supply should be decoupled from the system's power domains to prevent noise and voltage fluctuations from affecting its operation.
  • To troubleshoot issues with the ADM2795ETRWZ-EP's digital interface, start by verifying the device's power supply and clock signals. Then, check the digital signal integrity using an oscilloscope or logic analyzer. If issues persist, consult the device's datasheet and application notes for guidance on debugging and troubleshooting.
  • When using the ADM2795ETRWZ-EP in a safety-critical application, it's essential to follow the device's safety guidelines and recommendations. This includes ensuring that the device is used within its specified operating conditions, implementing redundant safety mechanisms, and performing thorough testing and validation to ensure the system's reliability and fault tolerance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM2795ETRWZ-EP Overview

Use the download button to access the ADM2795ETRWZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM27, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
