ADM2861EBRNZ-RL7 - Analog Devices

Description: 5.7 kV RMS 500kbps Half Duplex Signal and Power Isolated RS-485 Transceiver with ?15 kV IEC ESD

Download ADM2861EBRNZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

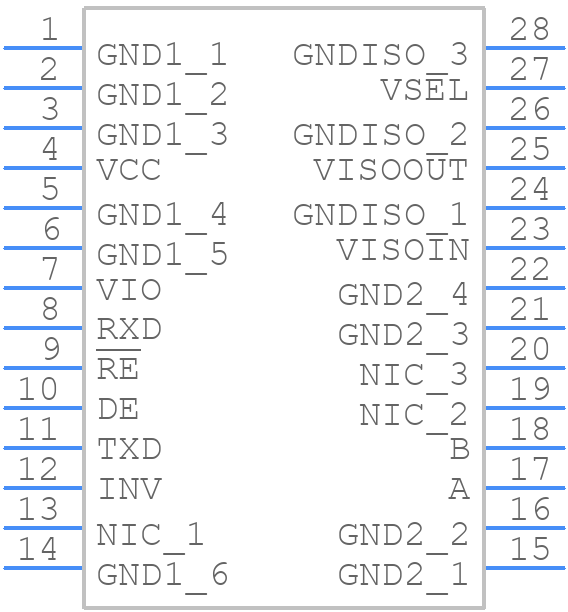

ADM2861EBRNZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

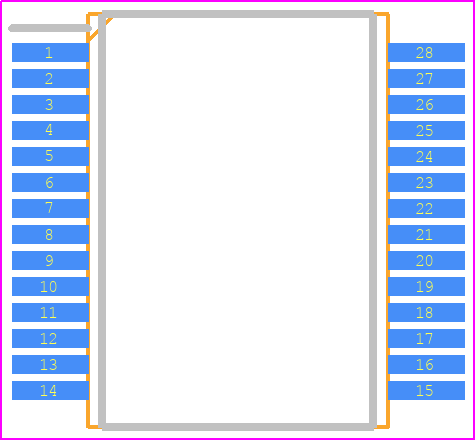

ADM2861EBRNZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RN-28-1
click to zoom
3D Models
ADM2861EBRNZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RN-28-1
click to zoom

ADM2861EBRNZ-RL7 Details

  • Manufacturer Part Number:

    ADM2861EBRNZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000167 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    RS-485; RS-422

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    53 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    400 ns

  • Width:

    7.5 mm

ADM2861EBRNZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM2861EBRNZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the transmission lines. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADM2861EBRNZ-RL7 in high-temperature environments, it's essential to provide adequate heat sinking, ensure good airflow, and follow proper thermal design guidelines. Additionally, consider using thermal interface materials and thermal pads to improve heat transfer.
  • To mitigate EMI and RFI when using the ADM2861EBRNZ-RL7, use shielding, filtering, and grounding techniques. Ensure that the device is placed in a shielded enclosure, and use filters on the input and output lines. Also, follow proper PCB layout guidelines to minimize radiation and susceptibility.
  • To troubleshoot common issues with the ADM2861EBRNZ-RL7, start by checking the power supply voltage, clock frequency, and signal integrity. Use oscilloscopes and logic analyzers to debug the issue. Also, consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • To verify the performance of the ADM2861EBRNZ-RL7, use a combination of digital and analog test equipment, such as oscilloscopes, logic analyzers, and signal generators. Perform tests such as eye pattern analysis, jitter measurement, and bit error rate testing to ensure the device meets the required specifications.
