ADM3062EARMZ-R7 - Analog Devices

Description: ► TIA/EIA RS-485 compliant over full supply range ► 3.0 V to 5.5 V operating voltage range on VCC ► 1.62 V to 5.5 V VIO logic supply option available ► ESD protection on the bus pins ► IEC 61000-4-2 ≥ ±12 kV contact discharge ► IEC 61000-4-2 ≥ ±12 kV air discharge ► HBM ≥ ±30 kV ► Full hot swap support (glitch free power-up/power-down) ► High speed 50 Mbps data rate (ADM3065E/ADM3066E/ ADM3067E/ADM3068E) ► Low speed 500 kbps data rate for long cables (ADM3061E/ ADM3062E/ADM3063E/ADM3064E) ► Full

Download ADM3062EARMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

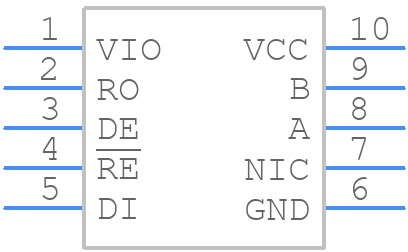

ADM3062EARMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3062EARMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
ADM3062EARMZ-R7 - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

ADM3062EARMZ-R7 Details

  • Manufacturer Part Number:

    ADM3062EARMZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP10,.20,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    800 ns

  • Width:

    3 mm

ADM3062EARMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3062EARMZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-0971 for more details.
  • Proper termination of the ADM3062EARMZ-R7 involves using a 50Ω termination resistor at the receiver end, and a 100Ω differential termination resistor at the transmitter end. Additionally, use a 100nF capacitor in series with the termination resistor to filter out high-frequency noise.
  • The maximum cable length supported by the ADM3062EARMZ-R7 depends on the signal frequency and cable quality. As a general guideline, the device can support cable lengths up to 10 meters at 100 Mbps, and up to 3 meters at 1 Gbps. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • The ADM3062EARMZ-R7 has built-in ESD protection, but additional protection measures can be taken to ensure device reliability. Use ESD-sensitive handling procedures during assembly, and consider adding external ESD protection devices such as TVS diodes or ESD arrays to the PCB design.
  • The recommended power-up sequence for the ADM3062EARMZ-R7 is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the device is properly initialized and configured before data transmission begins.
