ADM3062EBRMZ - Analog Devices

Description: ► TIA/EIA RS-485 compliant over full supply range ► 3.0 V to 5.5 V operating voltage range on VCC ► 1.62 V to 5.5 V VIO logic supply option available ► ESD protection on the bus pins ► IEC 61000-4-2 ≥ ±12 kV contact discharge ► IEC 61000-4-2 ≥ ±12 kV air discharge ► HBM ≥ ±30 kV ► Full hot swap support (glitch free power-up/power-down) ► High speed 50 Mbps data rate (ADM3065E/ADM3066E/ ADM3067E/ADM3068E) ► Low speed 500 kbps data rate for long cables (ADM3061E/ ADM3062E/ADM3063E/ADM3064E) ► Full

Download ADM3062EBRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

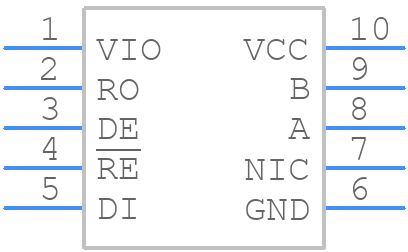

ADM3062EBRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3062EBRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom
3D Models
ADM3062EBRMZ - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP] (RM-10)
click to zoom

ADM3062EBRMZ Details

  • Manufacturer Part Number:

    ADM3062EBRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP10,.20,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    800 ns

  • Width:

    3 mm
