ADM3066EBCPZ-R7 - Analog Devices

Description: 3.0 V to 5.5 V with VIO, ±12 kV IEC ESD Protected, Half Duplex 50 Mbps RS-485 Transceiver

Download ADM3066EBCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

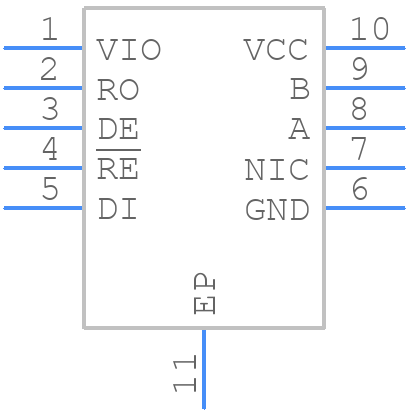

Symbol
ADM3066EBCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3066EBCPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADM3066EBCPZ-R7sq
click to zoom
3D Models
ADM3066EBCPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - ADM3066EBCPZ-R7sq
click to zoom

ADM3066EBCPZ-R7 Details

  • Manufacturer Part Number:

    ADM3066EBCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-05-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    35 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    15 ns

  • Width:

    3 mm

ADM3066EBCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3066EBCPZ-R7 should minimize noise and ensure good signal integrity. This can be achieved by keeping the signal traces short, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADM3066EBCPZ-R7, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 0.1 μF and 10 μF) close to the device's power pins to filter out high-frequency noise. Also, ensure that the power supply can provide the required current for the device's operation.
  • The maximum cable length that can be used with the ADM3066EBCPZ-R7 depends on the specific application and the type of cable used. As a general rule, it's recommended to keep the cable length as short as possible to minimize signal attenuation and noise. However, the device can support cable lengths up to 100 meters or more with proper signal conditioning and termination.
  • To troubleshoot common issues with the ADM3066EBCPZ-R7, start by checking the power supply and decoupling capacitors to ensure they are functioning properly. Verify that the device is properly configured and that the signal inputs are within the specified range. Use an oscilloscope to analyze the signal waveforms and check for noise, distortion, or other anomalies. Also, review the device's datasheet and application notes for troubleshooting guidelines and tips.
  • The ADM3066EBCPZ-R7 is designed to operate in a wide range of temperatures (-40°C to +125°C) and can tolerate some level of vibration. However, it's essential to ensure that the device is properly mounted and secured to prevent mechanical stress. Additionally, consider using a conformal coating or other environmental protection measures to protect the device from moisture, dust, or other contaminants.
