ADM3067EBRZ - Analog Devices

Description: ► TIA/EIA RS-485 compliant over full supply range ► 3.0 V to 5.5 V operating voltage range on VCC ► 1.62 V to 5.5 V VIO logic supply option available ► ESD protection on the bus pins ► IEC 61000-4-2 ≥ ±12 kV contact discharge ► IEC 61000-4-2 ≥ ±12 kV air discharge ► HBM ≥ ±30 kV ► Full hot swap support (glitch free power-up/power-down) ► High speed 50 Mbps data rate (ADM3065E/ADM3066E/ ADM3067E/ADM3068E) ► Low speed 500 kbps data rate for long cables (ADM3061E/ ADM3062E/ADM3063E/ADM3064E) ► Full

Download ADM3067EBRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

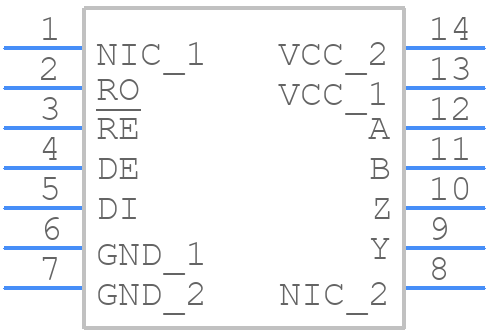

ADM3067EBRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3067EBRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)-8
click to zoom
3D Models
ADM3067EBRZ - Analog Devices - 3D model - Small Outline Packages - - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)-8
click to zoom

ADM3067EBRZ Details

  • Manufacturer Part Number:

    ADM3067EBRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    35 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    15 ns

  • Width:

    3.9 mm

ADM3067EBRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3067EBRZ should minimize noise and ensure good signal integrity. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce electromagnetic interference (EMI). Also, place the device close to the signal source and use a low-ESR capacitor for the VCC pin.
  • To ensure reliable operation of the ADM3067EBRZ in high-temperature environments, make sure to follow the recommended operating temperature range of -40°C to +125°C. Also, consider using a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Additionally, derate the device's power consumption and signal frequency according to the temperature derating curves provided in the datasheet.
  • The maximum cable length that can be driven by the ADM3067EBRZ depends on the cable type, signal frequency, and termination. As a general rule, the ADM3067EBRZ can drive up to 100 meters of cable at a data rate of 100 Mbps. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • To troubleshoot common issues with the ADM3067EBRZ, start by checking the power supply voltage and ensuring that it's within the recommended range. Next, verify that the input signal is within the specified amplitude and frequency range. Use an oscilloscope to check for signal distortion or ringing, and ensure that the output signal is properly terminated. If data errors occur, check the signal integrity and ensure that the receiver is properly configured.
  • Yes, the ADM3067EBRZ can be used in a redundant or fault-tolerant system. The device has a built-in fault detection feature that can detect faults such as input signal loss or output signal distortion. The device can also be configured to switch to a backup signal source in case of a fault. Additionally, the device's output can be connected to a redundant receiver or a fault-tolerant system to ensure continued operation in case of a failure.
