ADM3068EBRZ-R7 - Analog Devices

Description: 3.0 V to 5.5 V, ±12 kV IEC ESD Protected, 500 kbps/50 Mbps RS-485 Transceiver

Download ADM3068EBRZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

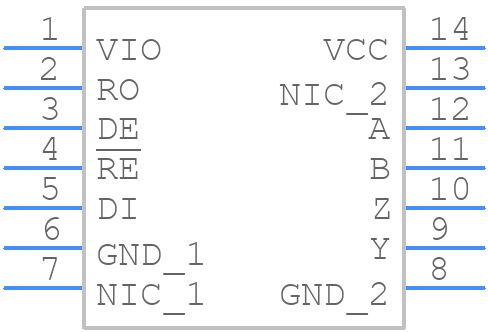

ADM3068EBRZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3068EBRZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)
click to zoom
3D Models
ADM3068EBRZ-R7 - Analog Devices - 3D model - Small Outline Packages - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)
click to zoom

ADM3068EBRZ-R7 Details

  • Manufacturer Part Number:

    ADM3068EBRZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    35 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    15 ns

  • Width:

    3.9 mm

ADM3068EBRZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3068EBRZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-0971 for more details.
  • Proper termination of the ADM3068EBRZ-R7 involves using a 50Ω termination resistor at the receiver end, and a 50Ω transmission line impedance. The device also has an internal 50Ω termination resistor, so no external resistor is needed at the driver end. Refer to the datasheet section on 'Layout and Termination' for more information.
  • The maximum cable length supported by the ADM3068EBRZ-R7 depends on the signal frequency and the type of cable used. As a general guideline, the device can support cable lengths up to 10 meters at 100 Mbps, and up to 3 meters at 1 Gbps. However, this can vary depending on the specific application and cable characteristics.
  • The ADM3068EBRZ-R7 has built-in ESD protection, but additional protection measures may be necessary depending on the application. It is recommended to use ESD protection devices such as TVS diodes or ESD arrays at the connector or cable interface, and to follow proper ESD handling procedures during manufacturing and assembly.
  • The power consumption of the ADM3068EBRZ-R7 depends on the operating frequency and mode. The typical power consumption is around 150 mW at 100 Mbps, and 300 mW at 1 Gbps. To reduce power consumption, consider using the device's low-power mode, reducing the operating frequency, or using a lower supply voltage.
