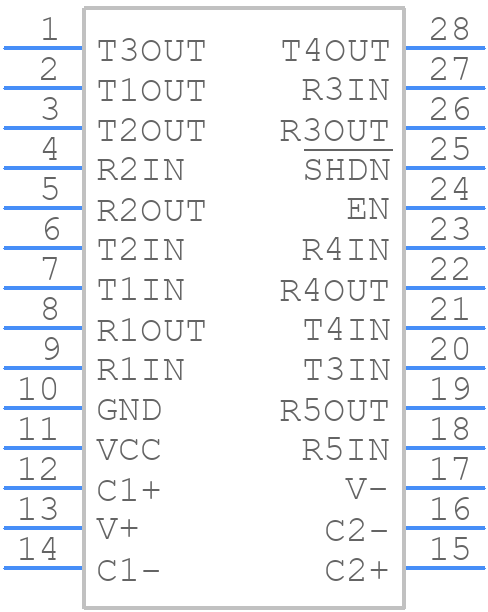

ADM560JRSZ-REEL - Analog Devices

ADM560JRSZ-REEL Details

• Manufacturer Part Number:

  ADM560JRSZ-REEL

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SSOP

• Package Description:

  LEAD FREE, MO-150AH, SSOP-28

• Pin Count:

  28

• Manufacturer Package Code:

  RS-28

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Differential Output:

  NO

• Driver Number of Bits:

  4

• High Level Input Current-Max:

  0.00004 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232; TIA-232

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  10.2 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  10 V

• Output Characteristics:

  TOTEM-POLE

• Output Low Current-Max:

  0.0016 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP28,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  2000 ns

• Receiver Number of Bits:

  5

• Seated Height-Max:

  2 mm

• Supply Current-Max:

  3 mA

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  3.63 V

• Supply Voltage1-Min:

  2.97 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Transmit Delay-Max:

  1000 ns

• Width:

  5.3 mm
