ADM691AARWZ-REEL - Analog Devices

Description: Processor Supervisor 4.65V 1 Active High/Active Low/Open Drain/Push-Pull Automotive 16-Pin SOIC W T/R

Download ADM691AARWZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

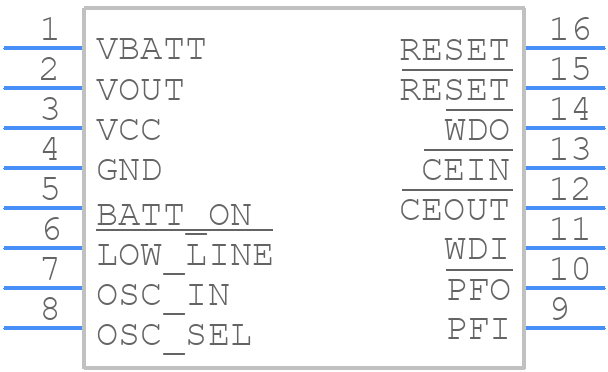

ADM691AARWZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM691AARWZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-16W)
click to zoom
3D Models
ADM691AARWZ-REEL - Analog Devices - 3D model - Small Outline Packages - (R-16W)
click to zoom

ADM691AARWZ-REEL Details

  • Manufacturer Part Number:

    ADM691AARWZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:Y;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.25 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM691AARWZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM691AARWZ-REEL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
  • The ADM691AARWZ-REEL is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's specifications at high temperatures.
  • The ADM691AARWZ-REEL is a commercial-grade device, not specifically designed for high-reliability or safety-critical applications. For such applications, consider using a device with a higher reliability rating, such as a device with a higher temperature rating or a device specifically designed for high-reliability applications.
  • To troubleshoot issues with the ADM691AARWZ-REEL, start by verifying the power supply and decoupling. Check for proper PCB layout and routing. Use an oscilloscope to measure the input and output signals. Consult the datasheet and application notes for guidance on troubleshooting common issues.
