ADM692AARNZ-REEL - Analog Devices

Description: Microprocessor Supervisor with Backup Battery Switchover, Precision Supply Voltage Monitor 4.65 V ADM690A/ADM802L/ADM805L 4.40 V ADM692A/ADM802M/ADM805M Reset Assertion Down to 1 V VCC Reset Timeout—200 ms Watchdog Timer—1.6 s 100 mA Quiescent Supply Current Automatic Battery Backup Power Switching Voltage Monitor for Power Fail 62% Power Fail Accuracy on ADM802L/M Space-Saving MicroSOIC Package (ADM690A) APPLICATIONS Microprocessor Systems Computers Controllers Intelligent Instruments

Download ADM692AARNZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

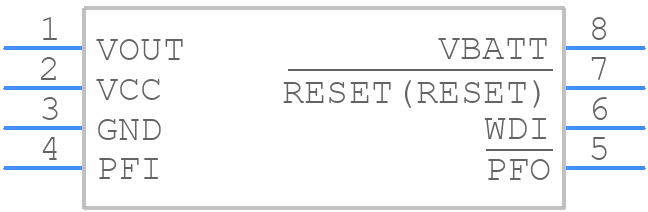

Symbol
ADM692AARNZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM692AARNZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOIC*-1
click to zoom
3D Models
ADM692AARNZ-REEL - Analog Devices - 3D model - Small Outline Packages - 8-Lead SOIC*-1
click to zoom

ADM692AARNZ-REEL Details

  • Manufacturer Part Number:

    ADM692AARNZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM692AARNZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM692AARNZ-REEL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper decoupling, place a 10uF ceramic capacitor between the VIN pin and the GND pin, and a 100nF ceramic capacitor between the VOUT pin and the GND pin. Additionally, use a 1uF ceramic capacitor between the VIN pin and the GND pin for each 10 inches of PCB trace.
  • The ADM692AARNZ-REEL is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
  • The ADM692AARNZ-REEL is a commercial-grade device, but Analog Devices Inc offers a range of high-reliability and aerospace-grade devices. Consult with Analog Devices Inc or a qualified distributor to determine the suitability of the ADM692AARNZ-REEL or alternative devices for high-reliability or aerospace applications.
  • To troubleshoot issues with the ADM692AARNZ-REEL, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, decoupling, and thermal management. Consult the datasheet, application notes, and Analog Devices Inc's support resources for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM692AARNZ-REEL Overview

Use the download button to access the ADM692AARNZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM69, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
