ADM693AARWZ - Analog Devices

Description: Analog Devices ADM693AARWZ, Processor Supervisor 4.75V, WDT 16-Pin, SOIC W

Download ADM693AARWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

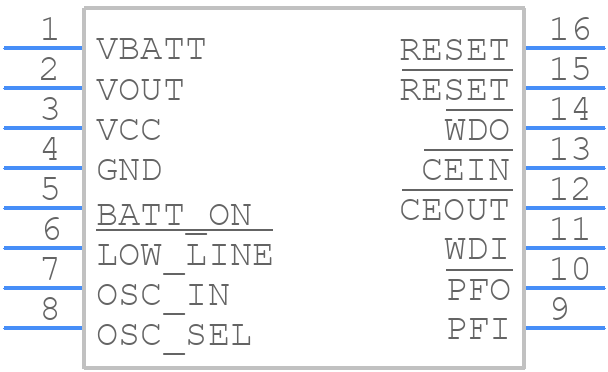

ADM693AARWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM693AARWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-16W)
click to zoom
3D Models
ADM693AARWZ - Analog Devices - 3D model - Small Outline Packages - (R-16W)
click to zoom

ADM693AARWZ Details

  • Manufacturer Part Number:

    ADM693AARWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:Y;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.25 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM693AARWZ Frequently Asked Questions (FAQs)

  • The ADM693AARWZ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the power source, use short traces, and avoid routing signals under the device. Additionally, a solid ground plane and decoupling capacitors should be used to minimize noise and ensure stability.
  • Proper decoupling is essential for the ADM693AARWZ. It is recommended to use a 0.1uF ceramic capacitor between the VCC and GND pins, and a 10uF electrolytic capacitor between the VCC and GND pins. The capacitors should be placed as close to the device as possible to minimize inductance.
  • The ADM693AARWZ has an operating temperature range of -40°C to +125°C. However, it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • The ADM693AARWZ is a surface-mount device and can be used in high-vibration environments. However, it is recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, the PCB should be designed to minimize flexure and vibration.
  • The recommended soldering profile for the ADM693AARWZ is a peak temperature of 260°C, with a dwell time of 10-30 seconds. The device should be soldered using a solder with a melting point of 220°C or higher.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM693AARWZ Overview

Use the download button to access the ADM693AARWZ schematic symbol, PCB footprint, and 3D model.
