ADM707ANZ - Analog Devices

Description: Supervisory microprocessor,ADM707AN DIP8 ADM707ANZ, Processor Supervisor 4.65 V Active High, Active Low, Push-Pull, reset 8-Pin PDIP

Download ADM707ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

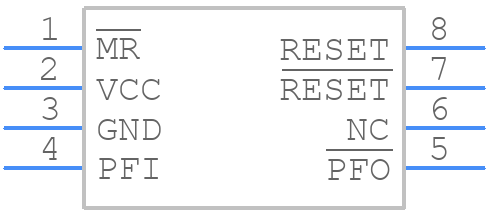

ADM707ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM707ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8
click to zoom
3D Models
ADM707ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8
click to zoom

ADM707ANZ Details

  • Manufacturer Part Number:

    ADM707ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    LEAD FREE, PLASTIC, MS-001BA, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Width:

    7.62 mm

ADM707ANZ Frequently Asked Questions (FAQs)

  • The ADM707ANZ should be placed close to the power source, and the input and output capacitors should be placed as close as possible to the device. A ground plane is recommended to minimize EMI and noise. Additionally, the device should be oriented to minimize radiation and the input and output traces should be routed away from each other.
  • To ensure proper bypassing, a 0.1uF ceramic capacitor should be placed between the VIN pin and the GND pin, and a 10uF electrolytic capacitor should be placed between the VOUT pin and the GND pin. The capacitors should be placed as close as possible to the device.
  • The ADM707ANZ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range is dependent on the specific application and the device's power dissipation. It's recommended to consult the thermal management section of the datasheet for more information.
  • The ADM707ANZ is a commercial-grade device and is not designed for high-reliability or aerospace applications. For such applications, a radiation-hardened or high-reliability version of the device may be required. It's recommended to consult with Analog Devices Inc. for more information.
  • To troubleshoot issues with the ADM707ANZ, first check the input voltage and current, and ensure that the device is properly bypassed. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for more information on troubleshooting and fault detection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM707ANZ Overview

Use the download button to access the ADM707ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM70, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
