ADM709TARZ - Analog Devices

Description: Analog Devices ADM709TARZ, Processor Supervisor 3 V, 3.3 V, 5 V, 8-Pin SOIC

Download ADM709TARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

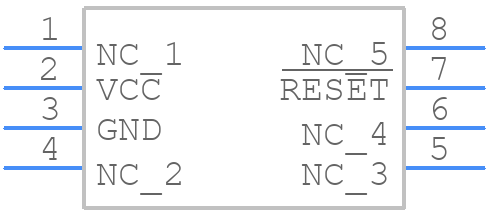

Symbol
ADM709TARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM709TARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (SO-8)
click to zoom
3D Models
ADM709TARZ - Analog Devices - 3D model - Small Outline Packages - (SO-8)
click to zoom

ADM709TARZ Details

  • Manufacturer Part Number:

    ADM709TARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.08V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM709TARZ Frequently Asked Questions (FAQs)

  • The ADM709TARZ is a sensitive device and requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise coupling. Additionally, it is recommended to use a decoupling capacitor (e.g., 100nF) between the VCC and GND pins to filter out high-frequency noise.
  • The ADM709TARZ requires a proper bias voltage (VCC) between 2.7V and 5.5V to operate correctly. Incorrect biasing can lead to inaccurate voltage readings, reduced accuracy, and even device damage. Ensure the VCC pin is connected to a stable voltage source, and avoid voltage drops or noise on the VCC line.
  • The ADM709TARZ can handle input voltages up to 30V, but it is recommended to keep the input voltage below 25V for optimal performance. If the input voltage exceeds the maximum rating, the device may be damaged or exhibit incorrect behavior, such as incorrect voltage readings or device latch-up.
  • The ADM709TARZ requires calibration to ensure accurate voltage readings. Incorrect calibration can lead to inaccurate readings, reduced accuracy, and even device damage. Follow the calibration procedure outlined in the datasheet, and ensure the calibration voltage is within the specified range (2.5V to 5.5V).
  • The ADM709TARZ has a typical response time of 10μs, which means it can track changes in the input voltage within 10μs. This response time is suitable for most applications, but may not be suitable for high-speed or high-frequency applications. Ensure your application can accommodate the response time of the ADM709TARZ.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM709TARZ Overview

Use the download button to access the ADM709TARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM70, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
