ADN2830ACP32-REEL7 - Analog Devices

Description: LASER AVERAGE POWER CONTROLLER

Download ADN2830ACP32-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

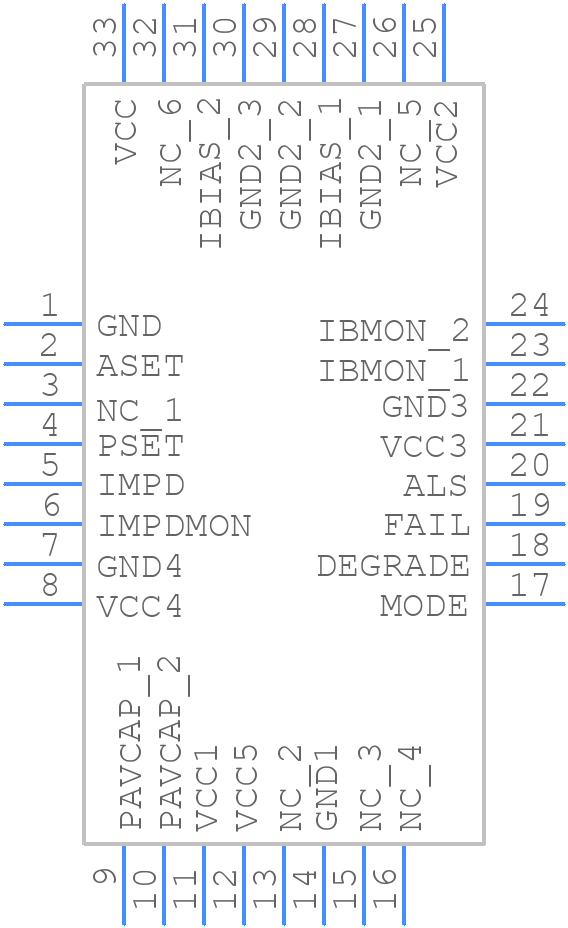

Symbol
ADN2830ACP32-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2830ACP32-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-7)
click to zoom
3D Models
ADN2830ACP32-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-7)
click to zoom

ADN2830ACP32-REEL7 Details

  • Manufacturer Part Number:

    ADN2830ACP32-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:44.123

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XBCS-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    CSP

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE

  • Peak Reflow Temperature (Cel):

    240

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADN2830ACP32-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADN2830 evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ADN2830ACP32-REEL7 is a versatile driver that can be configured for various laser diodes. Engineers can use the device's built-in programmable features, such as the modulation current and bias current, to optimize the driver for their specific laser diode. Additionally, Analog Devices provides a laser diode selection guide and application notes to help with configuration.
  • The ADN2830ACP32-REEL7 has an operating temperature range of -40°C to +85°C, but it's essential to note that the device's performance and reliability may be affected at extreme temperatures. Engineers should consult the datasheet and application notes for guidance on thermal management and derating.
  • To ensure EMC, engineers should follow proper PCB design and layout practices, such as using shielding, grounding, and filtering. Additionally, they should consider the device's electromagnetic emissions and susceptibility, and take measures to minimize interference. Analog Devices provides EMC guidelines and application notes to help with compliance.
  • The typical rise and fall time of the ADN2830ACP32-REEL7's output signal is around 100 ps to 200 ps, depending on the specific configuration and operating conditions. However, this can be affected by factors such as the laser diode's characteristics, PCB layout, and output impedance. Engineers should consult the datasheet and application notes for more information.
