ADN4668ARUZ-REEL7 - Analog Devices

Description: LVDS Interface IC LVDS Quad Recever I.C.

Download ADN4668ARUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

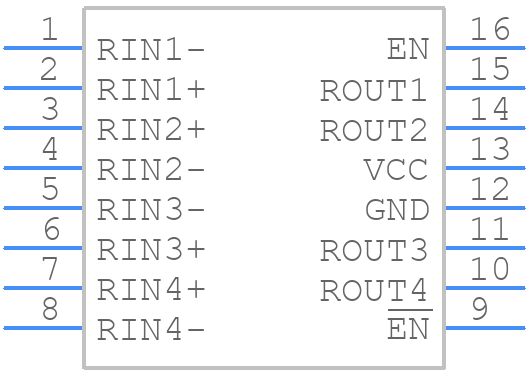

Symbol
ADN4668ARUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4668ARUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
ADN4668ARUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

ADN4668ARUZ-REEL7 Details

  • Manufacturer Part Number:

    ADN4668ARUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.002 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2.7 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADN4668ARUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4668ARUZ-REEL7 involves keeping the signal paths short, using a solid ground plane, and minimizing noise coupling. It's recommended to follow Analog Devices' application notes and layout guidelines for optimal performance.
  • To ensure the ADN4668ARUZ-REEL7 operates within its specified temperature range, it's essential to provide adequate heat sinking, avoid overheating, and maintain a stable ambient temperature. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management.
  • The ADN4668ARUZ-REEL7 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. Use ESD-safe materials, handle the device by the body, and avoid touching the pins or leads.
  • The ADN4668ARUZ-REEL7 is a high-reliability device, but it's essential to evaluate its suitability for safety-critical applications. Consult with Analog Devices' application engineers and follow relevant industry standards, such as IEC 61508 or ISO 26262, to ensure the device meets the required safety and reliability standards.
  • To troubleshoot issues with the ADN4668ARUZ-REEL7, start by consulting the datasheet and application notes. Check the device's operating conditions, signal integrity, and power supply. Use oscilloscopes, logic analyzers, or other diagnostic tools to identify the root cause of the issue. If needed, contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4668ARUZ-REEL7 Overview

Use the download button to access the ADN4668ARUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Line Driver or Receivers
