ADP1190ACBZ-R7 - Analog Devices

Description: Analog Devices ADP1190ACBZ-R7, Power Distribution Switch, High Side, 170mΩ, 1.4 V min., 12-Pin WLCSP

Download ADP1190ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

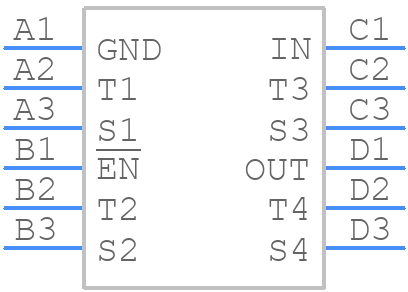

Symbol
ADP1190ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADP1190ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - CB-12-10
click to zoom
3D Models
ADP1190ACBZ-R7 - Analog Devices - 3D model - BGA - CB-12-10
click to zoom

ADP1190ACBZ-R7 Details

  • Manufacturer Part Number:

    ADP1190ACBZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:44.416

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CB-12-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.4 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.2 mm

ADP1190ACBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADP1190ACBZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The output capacitor should be chosen based on the output voltage and current requirements of the application. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 2x the output voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to ensure stability.
  • The ADP1190ACBZ-R7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to derate the device's power dissipation based on the ambient temperature to ensure reliable operation.
  • Yes, the ADP1190ACBZ-R7 is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices, and it's also suitable for use in other high-reliability applications such as aerospace, industrial, and medical devices.
  • To troubleshoot issues with the ADP1190ACBZ-R7, start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Check the PCB layout and thermal design to ensure they meet the recommended guidelines. Use an oscilloscope to check for noise and oscillations on the output, and use a thermal camera to check for hotspots on the device. Consult the datasheet and application notes for more detailed troubleshooting guidelines.
