A good PCB layout for the ADR03BRZ-REEL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the VDD pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. The input voltage should be within the recommended range, and the output should be loaded with a minimum of 1kΩ to ensure stability.
To manage thermal issues, ensure good airflow around the device, and consider using a heat sink or thermal pad on the exposed pad of the package. Keep the device away from heat sources and ensure the PCB is designed for good thermal dissipation.
To troubleshoot issues, check the PCB layout for any errors or noise coupling, ensure proper decoupling and biasing, and verify the input and output impedances match the recommended values. Also, check for any signs of overheating or physical damage to the device.
Yes, to minimize EMI/EMC issues, use a shielded enclosure, keep the device away from high-frequency sources, and ensure the PCB is designed with EMI/EMC in mind. Also, use a common-mode choke or ferrite bead on the input and output lines to reduce emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADR03BRZ-REEL7 Overview

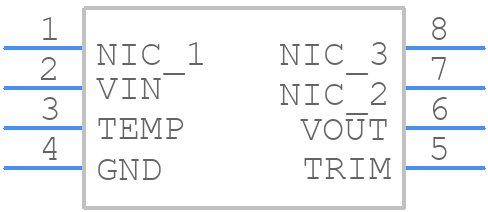

Use the download button to access the ADR03BRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR03,
or try a keyword search, such as Voltage References
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
