ADR03BRZ - Analog Devices

Description: ADR03B 2.5V voltage reference SOIC

Download ADR03BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

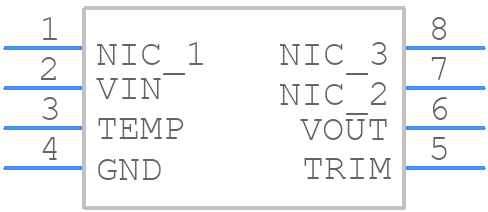

ADR03BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR03BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - [SOIC_N]-1
click to zoom
3D Models
ADR03BRZ - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-1
click to zoom

ADR03BRZ Details

  • Manufacturer Part Number:

    ADR03BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT CAN BE ADJUSTED FROM 2.3V TO 2.8V

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.5025 V

  • Output Voltage-Min:

    2.4975 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    3 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

ADR03BRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR03BRZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated analog ground plane can help reduce noise and improve performance.
  • To ensure proper biasing, connect the VREF pin to a quiet analog ground, and decouple the VCC pin with a 10uF capacitor to reduce noise. Also, ensure the input voltage is within the recommended range of 2.7V to 5.5V.
  • The recommended input voltage range for the ADR03BRZ is 2.7V to 5.5V. The output voltage is proportional to the input voltage, with a typical output voltage range of 2.5V to 5.0V. Operating outside the recommended input voltage range may affect the output voltage accuracy and stability.
  • The ADR03BRZ has a high power supply rejection ratio (PSRR) to minimize the impact of input voltage noise. To further reduce the impact of noise, use a low-noise power supply, add a 10uF decoupling capacitor between VCC and GND, and consider using a voltage regulator with a low noise output.
  • The thermal resistance of the ADR03BRZ is 155°C/W. High temperatures can affect the device's performance, accuracy, and long-term reliability. Ensure good airflow, use a heat sink if necessary, and avoid operating the device near its maximum temperature rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR03BRZ Overview

Use the download button to access the ADR03BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR03, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
