ADR03WARZ-RL - Analog Devices

Description: V-Ref Precision 2.5V 10mA Automotive 8-Pin SOIC N T/R

Download ADR03WARZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

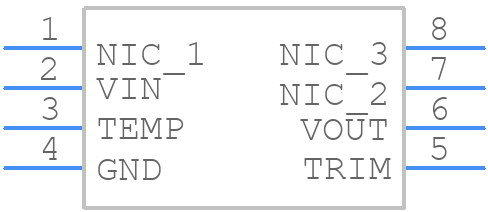

ADR03WARZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR03WARZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R8
click to zoom
3D Models
ADR03WARZ-RL - Analog Devices - 3D model - Small Outline Packages - R8
click to zoom

ADR03WARZ-RL Details

  • Manufacturer Part Number:

    ADR03WARZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.505 V

  • Output Voltage-Min:

    2.495 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    3.9 mm

ADR03WARZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADR03WARZ-RL. Ensure a solid ground plane, keep the input and output traces short and separate, and use a bypass capacitor (e.g., 10nF) between the VDD and GND pins. Refer to the Analog Devices application note AN-1111 for more details.
  • The ADR03WARZ-RL is a high-precision voltage reference, and it's sensitive to noise. Use a low-noise power supply, add a noise filter (e.g., RC filter) at the input, and consider using a shielded enclosure to minimize electromagnetic interference (EMI).
  • The thermal resistance (θJA) of the ADR03WARZ-RL in the SOIC-8 package is approximately 125°C/W. This is important to consider when designing the PCB and thermal management system to ensure the device operates within its specified temperature range.
  • No, the ADR03WARZ-RL is a voltage reference, not a voltage regulator. It's designed to provide a stable voltage output, but it's not intended to regulate voltage or provide current limiting. Use a separate voltage regulator if you need to regulate the voltage.
  • The ADR03WARZ-RL is factory-calibrated, but you may need to perform additional calibration depending on your specific application. Refer to the datasheet and application notes for guidance on calibration procedures and trimming the output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR03WARZ-RL Overview

Use the download button to access the ADR03WARZ-RL schematic symbol, PCB footprint, and 3D model.
