ADR3420ARJZ-R2 - Analog Devices

Description: Analog Devices ADR3420ARJZ-R2, Series Voltage Reference 2.048V, ±0.1% 5.5 V max., 6-Pin SOT-23

Download ADR3420ARJZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

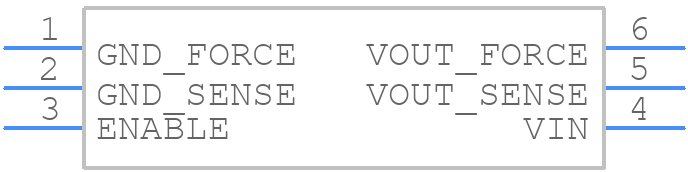

ADR3420ARJZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR3420ARJZ-R2 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - RJ-6 (SOT23)
click to zoom
3D Models
ADR3420ARJZ-R2 - Analog Devices - 3D model - SOT23 (6-Pin) - RJ-6 (SOT23)
click to zoom

ADR3420ARJZ-R2 Details

  • Manufacturer Part Number:

    ADR3420ARJZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.05 V

  • Output Voltage-Min:

    2.0459 V

  • Output Voltage-Nom:

    2.048 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    8 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    1.6 mm

ADR3420ARJZ-R2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the decoupling capacitors close to the device.
  • The ADR3420ARJZ-R2 is factory-calibrated, but it's recommended to perform a system-level calibration to account for PCB and component tolerances. Use a precision voltage source and a high-accuracy voltmeter to measure the output voltage, and adjust the output voltage using the TRIM pin if necessary.
  • The recommended input voltage range is 2.7V to 5.5V. Operating outside this range may affect the output voltage accuracy. For optimal performance, ensure the input voltage is within the recommended range and use a low-dropout linear regulator or a switching regulator with a low noise output.
  • Use a low-power mode if possible, and consider using a power-down pin to shut down the device when not in use. Optimize the PCB layout to reduce thermal resistance and use a thermal pad or heat sink if necessary. Ensure good airflow and avoid blocking airflow around the device.
  • Use a shielded enclosure and ensure good grounding practices. Keep the device away from high-frequency sources and use a common-mode choke or ferrite bead to filter the input power supply. Use a low-pass filter or a pi-filter to reduce high-frequency noise on the output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR3420ARJZ-R2 Overview

Use the download button to access the ADR3420ARJZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR34, or try a keyword search, such as Voltage References
