ADR3425ARJZ-R2 - Analog Devices

Description: Analog Devices ADR3425ARJZ-R2, Series Voltage Reference 2.5V, ±2.5mV 5.5 V max., 6-Pin SOT-23

Download ADR3425ARJZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

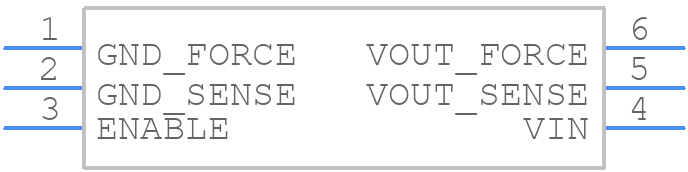

ADR3425ARJZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR3425ARJZ-R2 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - [SOT-23]
click to zoom
3D Models
ADR3425ARJZ-R2 - Analog Devices - 3D model - SOT23 (6-Pin) - [SOT-23]
click to zoom

ADR3425ARJZ-R2 Details

  • Manufacturer Part Number:

    ADR3425ARJZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.5025 V

  • Output Voltage-Min:

    2.4975 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    8 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    1.6 mm

ADR3425ARJZ-R2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) between the VIN pin and the analog ground plane.
  • Power the ADR3425ARJZ-R2 with a clean, low-noise power supply. Ensure the power supply voltage (VIN) is within the recommended range (2.7V to 5.5V). Power sequencing is not critical, but it's recommended to power the device after the input voltage has stabilized.
  • A 10uF ceramic capacitor (e.g., X5R or X7R) is recommended for the output capacitor (COUT). This value provides a good balance between stability and transient response.
  • Ensure good airflow around the device. Use a thermal pad or thermal interface material (TIM) to improve heat transfer between the device and the PCB. In high-temperature environments, consider using a heat sink or a thermally enhanced package.
  • Use a shielded enclosure and keep the device away from high-frequency sources. Use a common-mode choke or ferrite bead on the input and output lines to reduce EMI. Ensure good PCB layout practices, such as keeping analog and digital lines separate and using a solid ground plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR3425ARJZ-R2 Overview

Use the download button to access the ADR3425ARJZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR34, or try a keyword search, such as Voltage References
