ADR3512WCRMZ-R7 - Analog Devices

Description: ANALOG DEVICES - ADR3512WCRMZ-R7 - VOLTAGE REF, SERIES, 1.2V, MSOP-8

Download ADR3512WCRMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

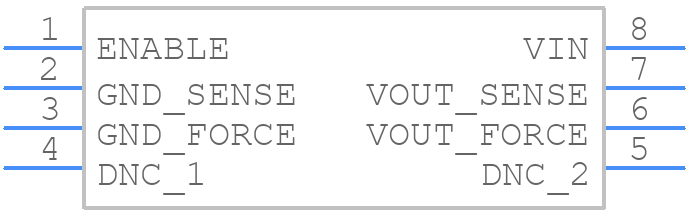

ADR3512WCRMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR3512WCRMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
ADR3512WCRMZ-R7 - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

ADR3512WCRMZ-R7 Details

  • Manufacturer Part Number:

    ADR3512WCRMZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    1.2012 V

  • Output Voltage-Min:

    1.1988 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    8 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3 mm

ADR3512WCRMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR3512WCRMZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the trim pins to achieve the desired output voltage. It's also recommended to use a high-precision voltage reference and to calibrate the device in the same operating conditions as the final application.
  • The ADR3512WCRMZ-R7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or heat sink, and to keep the device away from heat sources. Additionally, consider using thermal interface materials to improve heat transfer.
  • Yes, the ADR3512WCRMZ-R7 is suitable for high-reliability and safety-critical applications. It's automotive-qualified and meets the requirements of AEC-Q100. Additionally, it's compliant with various industry standards, including ISO 26262 and IEC 61508. Consult the datasheet and relevant documentation for specific certification and compliance information.
  • To troubleshoot issues with the ADR3512WCRMZ-R7, start by verifying the input voltage and power supply connections. Check for proper PCB layout and decoupling, and ensure that the device is properly calibrated. Use an oscilloscope to monitor the output voltage and look for signs of oscillation or noise. Consult the datasheet and application notes for specific troubleshooting guidance.
