ADR391BUJZ-R2 - Analog Devices

Description: ADR391B 2.5V voltage reference SOT23

Download ADR391BUJZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

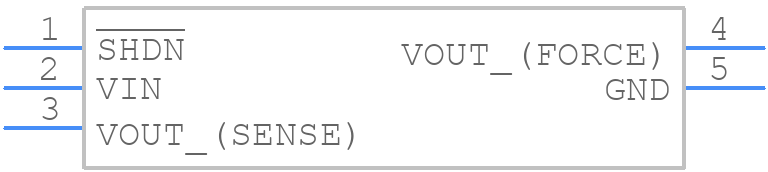

ADR391BUJZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR391BUJZ-R2 - Analog Devices PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - UJ-5 (TSOT)_1
click to zoom
3D Models
ADR391BUJZ-R2 - Analog Devices - 3D model - SOT23 (5-Pin) - UJ-5 (TSOT)_1
click to zoom

ADR391BUJZ-R2 Details

  • Manufacturer Part Number:

    ADR391BUJZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOT

  • Package Description:

    TSOT-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    UJ-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.504 V

  • Output Voltage-Min:

    2.494 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    9 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.16%

  • Width:

    1.6 mm

ADR391BUJZ-R2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) between VDD and GND, and a 0.1uF capacitor between VDD and AVDD.
  • The ADR391BUJZ-R2 has an internal calibration circuit. To ensure proper calibration, apply a voltage between VDD and GND within the recommended operating range (2.7V to 5.5V) and wait for the internal calibration cycle to complete (typically 10ms).
  • The recommended input voltage range for the ADR391BUJZ-R2 is between 2.7V and 5.5V. Operating outside this range may affect the device's accuracy and stability.
  • To minimize noise sensitivity, use a low-pass filter (e.g., RC filter) at the input, keep the input traces short and away from noise sources, and use a shielded cable or a twisted pair for the input signal. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The ADR391BUJZ-R2 has a thermal derating of 0.5mV/°C. This means that the output voltage will decrease by 0.5mV for every 1°C increase in temperature above 25°C. This can affect the device's accuracy and stability, especially in high-temperature applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR391BUJZ-R2 Overview

Use the download button to access the ADR391BUJZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR39, or try a keyword search, such as Voltage References
