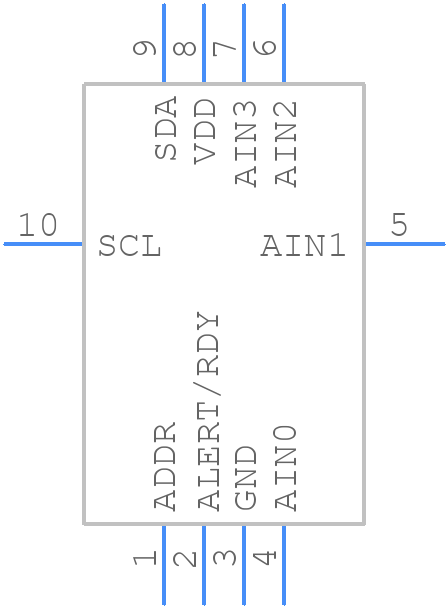

ADS1013IRUGT - Texas Instruments

ADS1013IRUGT Details

• Manufacturer Part Number:

  ADS1013IRUGT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  10

• Country Of Origin:

  Mainland China, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog Input Voltage-Max:

  5.5 V

• Analog Input Voltage-Min:

  2 V

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PQCC-N10

• JESD-609 Code:

  e4

• Length:

  2 mm

• Linearity Error-Max (EL):

  0.0122%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  2'S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC10,.06X.08,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.0033 MHz

• Seated Height-Max:

  0.4 mm

• Supply Current-Max:

  0.3 mA

• Supply Voltage-Min:

  2 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.5 mm
