The ADS1120IPWR requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1120IPWR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise, and consider using the device's built-in calibration features.
The recommended power-up sequence for the ADS1120IPWR is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent latch-up and ensures proper device operation.
The ADS1120IPWR's digital output data is available in a 24-bit, two's complement format. To handle the data, ensure your microcontroller or processor can accommodate the 24-bit data width, and consider using a FIFO or buffer to handle the data stream.
The ADS1120IPWR is available in a QFN package, which has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. Additionally, ensure good airflow around the device, and consider using thermal vias or heat sinks if operating in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1120IPWR Overview

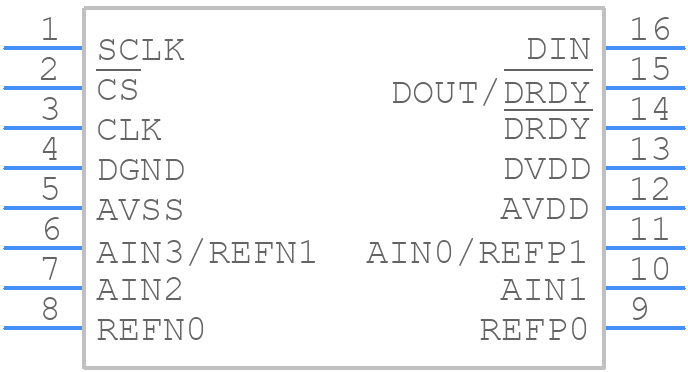

Use the download button to access the ADS1120IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
