A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Additionally, use a low-pass filter on the analog input pins to reduce noise.
The ADS112C04IPWR has an internal calibration mechanism. However, if external calibration is required, it can be done by applying a known input voltage and adjusting the offset and gain registers accordingly. The calibration process should be done at the operating temperature range of the device.
The ADS112C04IPWR can handle input voltages up to 5.5V without damaging the device. However, it's recommended to keep the input voltage within the specified range of 0V to 5V to ensure accurate readings and prevent damage.
If the ADS112C04IPWR is not providing accurate readings, check the input voltage range, ensure proper grounding and shielding, and verify that the device is properly calibrated. Also, check for any noise or interference in the system that may be affecting the readings.
Yes, the ADS112C04IPWR can be used in a multi-channel configuration. However, it's essential to ensure that the channels are properly multiplexed and that the device is properly calibrated for each channel.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS112C04IPWR Overview

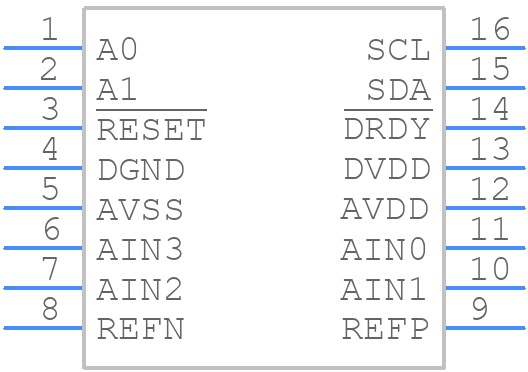

Use the download button to access the ADS112C04IPWR schematic symbol, PCB footprint, and 3D model.
