The ADS1146IPWR requires careful PCB layout and placement to ensure optimal performance. TI recommends placing the device near the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. A 4-layer PCB with a dedicated analog ground plane is recommended.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure proper filtering and buffering of the input signal, and consider using the device's built-in calibration features.
To ensure proper operation, follow the recommended power-up sequence: VDD, AVDD, and then DVDD. During power-down, reverse this sequence. Also, ensure that the device is in a stable state before taking any measurements.
To troubleshoot issues, start by verifying the PCB layout and component placement. Check for noise sources, such as switching regulators or high-frequency signals, and ensure proper grounding and shielding. Also, review the device's configuration and programming to ensure correct settings.
The ADS1146IPWR has a maximum junction temperature of 150°C. Ensure reliable operation by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Also, consider the device's thermal shutdown feature to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1146IPWR Overview

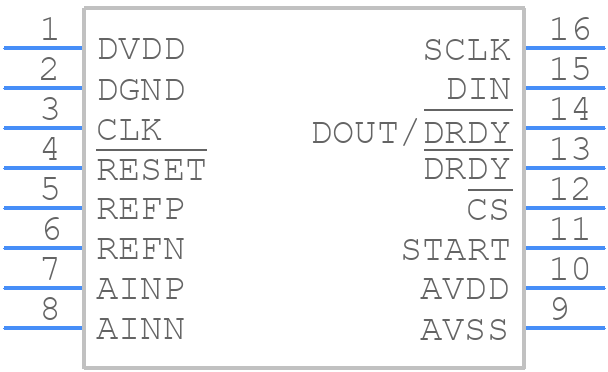

Use the download button to access the ADS1146IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
